Plugs & Sockets DC

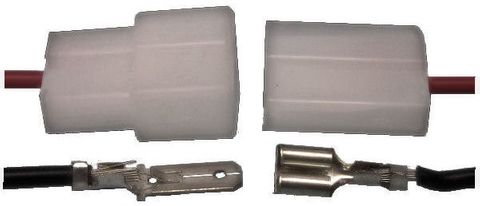

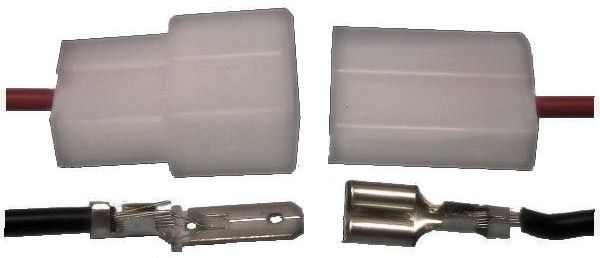

  • Polarised 2mm Plug and Socket Kits
    Plug and socket kits, polarised, using standard 6.3mm uninsulated crimp spade connections. Cable size up to 2mm. Rated 10 A.
    Part No. Description Price Quantity
    289010
    Plug kit 6,3mm spade 1 way QK1
    		$5.00 Inc GST
    289011
    Plug kit 6,3mm spade 2 way QK2
    		$5.00 Inc GST
    289012
    Plug kit 6,3mm spade 3 way QK3
    		$5.00 Inc GST
    289013
    Plug kit 6,3mm spade 4 way QK4
    		$5.00 Inc GST
    289014
    Plug kit 6,3mm spade 6 way QK6
    		$6.00 Inc GST
    289015
    Plug kit 6,3mm spade 8 way QK8
    		$7.00 Inc GST
  • Polarised 5mm Plug and Socket Kits
    Plug and socket kits, polarised, using standard 9,5mm uninsulated crimp spade connections. Cable size up to 5mm. Rated 30 A
    Part No. Description Price Quantity
    289020
    Plug kit 8mm spade 1 way QL1
    		$6.00 Inc GST
    289021
    Plug kit 8mm spade 2 way QL2
    		$6.00 Inc GST

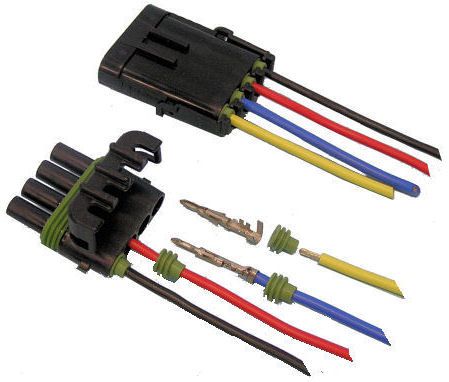

  • Waterproof Plug and Socket Kits
    These waterproof connectors are made for signal level circuits in harsh conditions where even a small degradation in the connnection may be critical. Rated 20A. With positive locking latch plus locking contacts.
    Part No. Description Price Quantity
    289051
    Plug and socket kit waterproof 2 pin
    		$10.00 Inc GST
    289052
    Plug and socket kit waterproof 3 pin
    		$14.00 Inc GST
    289053
    Plug and socket kit waterproof 4 pin Order pairs see 289043
    		$20.00 Inc GST
    289054
    Plug and socket kit waterproof 4 pin sq
    		$25.00 Inc GST
    289055
    Plug & socket kit waterproof 5pin
    		$49.00 Inc GST
  • HELLA Waterproof Plugs and Sockets
    Watertight plastic plugs and sockets for exterior or interior installations rated IP67. Socket includes plastic cap. Impact resistant plastic housing. Silver contacts. 2 to 4 pin with screw terminals rated 16A at 12V. 7 pin with solder terminals rated 10A at 12V. Plug suitable for cable up to 8mm outside diameter. Optional surface mounting base available.
    Part No. Description Price Quantity
    289070
    Plug & socket flushmount with cap IP67 2 pin screw terminal 16A HELLA 8JA 006 801-802 2782
    		$59.00 Inc GST
    289071
    Plug & socket flushmount with cap IP67 3 pin screw terminal 16A HELLA 8JA 006 803-801 2783
    		$67.00 Inc GST

    Related Products

  • Part No. Description Price Quantity
    289074
    Mounting surface for IP67 sockets w gasket HELLA 8XT 006 798-002 2786
    		$25.00 Inc GST

    Related Products

  • Grafter Plugs
    Grafter IP68 in-line plugs are designed to deliver reliable connections in harsh environments. Rated 250V & 12A. Available in 2, 3 and 4 pin variants with screw terminals. Seals for cables of OD 6,5mm to 8,5mm. Dimensions

    Downloads

    Part No. Description Price Quantity
    289090
    Plug Grafter IP68 250V 12A 2 pin VB-23AM02PL
    		$16.00 Inc GST
  • Grafter In-line Sockets
    Grafter IP68 in-line sockets, are designed to deliver reliable connections in harsh environments. Rated 250V & 12A. Available with 2, 3 & 4 pins with screw terminals. Seals for cables of OD 6,5mm to 8,5mm. Dim 54 x26mm

    Downloads

    Part No. Description Price Quantity
    289093
    Socket Grafter line IP68 250V 12A 2 pin VB-23AF02PL
    		$16.00 Inc GST
  • Grafter Panel Mount Sockets
    Grafter IP68 mounted sockets are designed to deliver reliable connections in harsh environments. Rated 250V/12A Waterproof cap to seal when not in use. Available with 2, 3&4 pins w screw terminals. Dim 24x31mm,cut d22mm

    Downloads

    Part No. Description Price Quantity
    289096
    Socket Grafter mountd IP68 250V 12A 2pin VB-23PF02F
    		$16.00 Inc GST
    289097
    Socket Grafter mountd IP68 250V 12A 3pin VB-23PF03F
    		$16.00 Inc GST

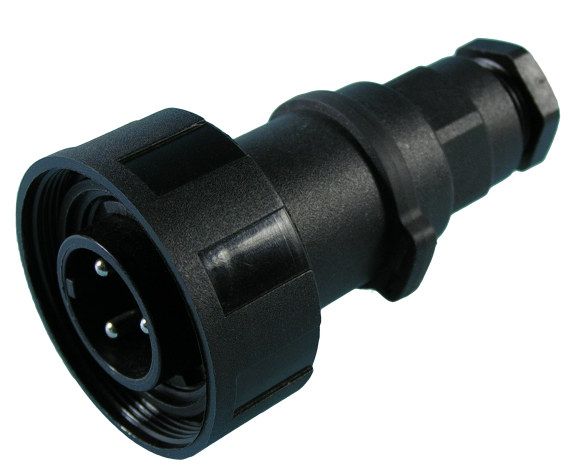

  • Bulgin Buccaneer Plugs
    Bulgin Buccaneer moulded glass filled black nylon plugs and sockets are rated IP68, ie submersible. Available with 2 - 7 pole screw terminals, 9 pole connectors crimp terminals. 50 & 75 Ohm coax connectors also available.

    Downloads

    Part No. Description Price Quantity
    289100
    Bulgin plug 2 pin 10A kit 51510
    		$25.00 Inc GST
    289101
    Bulgin plug 3 pin 10A kit 51514
    		$25.00 Inc GST
    289102
    Bulgin plug 4 pin 6A kit 51518
    		$25.00 Inc GST
    289104
    Bulgin plug 7 pin 3A kit 51526
    		$25.00 Inc GST
    289106
    Bulgin plug BNC 50 Ohm kit 51534
    		$36.00 Inc GST
    289107
    Bulgin plug BNC75 Ohm kit 51536
    		$36.00 Inc GST

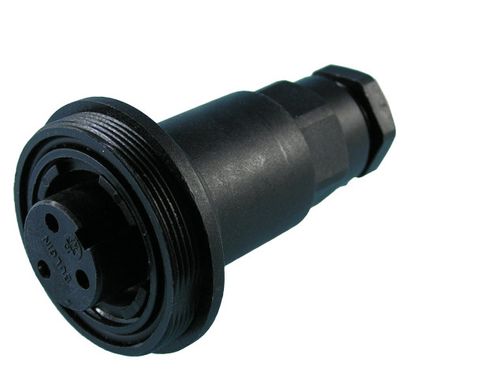

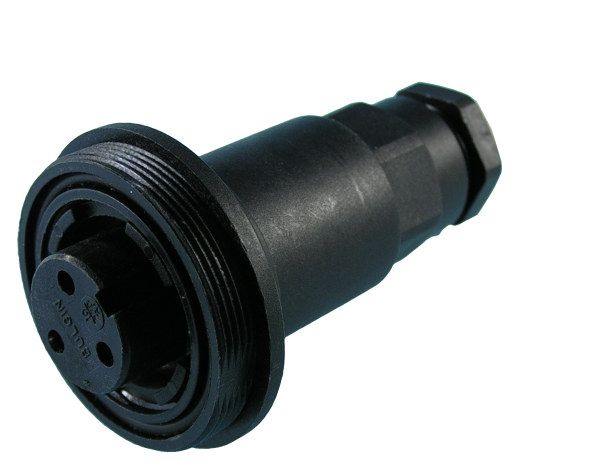

  • Bulgin Buccaneer Line Sockets
    Bulgin Buccaneer line sockets d35mm x 60mm. The Bulgin line sockets are suited to contain the full range of Bulgin Buccaneer connectors. Where appropriate, additional strain relief & cap 289152 may be considered.

    Downloads

    Part No. Description Price Quantity
    289110
    Bulgin socket in-line 2 pin 10A kit 51512
    		$25.00 Inc GST
    289111
    Bulgin socket in-line 3 pin 10A kit 51516
    		$25.00 Inc GST
    289112
    Bulgin socket in-line 4 pin 6A kit 51520
    		$25.00 Inc GST
    289114
    Bulgin socket in-line 7 pin 3A kit 51529
    		$25.00 Inc GST
    289116
    Bulgin socket in-line BNC 50 Ohm kit
    		$36.00 Inc GST
    289117
    Bulgin socket in-line BNC 75 Ohm kit
    		$36.00 Inc GST

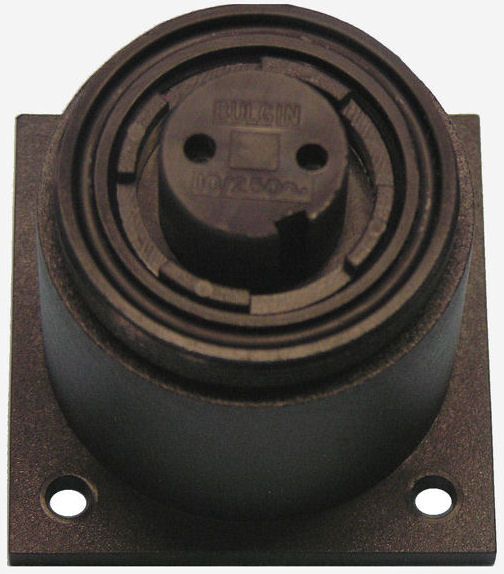

  • Bulgin Buccaneer Flushmount Socket
    Bulgin Buccaneer square flanged flush mount sockets 45mm x 45mm x 14mm protrusion. This requires a a recess in the mounting surface to contain the socket insert.

    Downloads

    Part No. Description Price Quantity
    289120
    Bulgin socket flush mount 2 pin 10A kit 51543
    		$25.00 Inc GST
    289121
    Bulgin socket flush mount 3 pin 10A kit 51545
    		$25.00 Inc GST
    289122
    Bulgin socket flush mount 4 pin 6A kit 51547
    		$25.00 Inc GST
    289124
    Bulgin socket flush mount 7 pin 3A kit 51551
    		$25.00 Inc GST
    289126
    Bulgin socket flush mount BNC 50 Ohm kit
    		$36.00 Inc GST
    289127
    Bulgin socket flush mount BNC 75 Ohm kit
    		$36.00 Inc GST

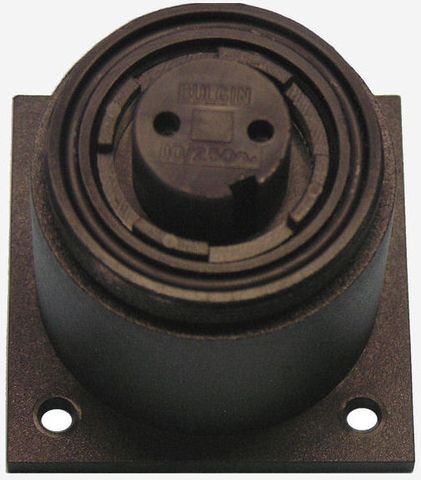

  • Bulgin Buccaneer Surfacemount Socket
    Bulgin Buccaneer surface mount sockets 45mm x 45mm x 35mm
    Part No. Description Price Quantity
    289130
    Bulgin socket surface mt 2 pin 10A kit 51559
    		$25.00 Inc GST
    289131
    Bulgin socket surface mt 3 pin 10A kit 51561 KIT
    		$25.00 Inc GST
    289132
    Bulgin socket surface mt 4 pin 6A kit 51563 Kit
    		$25.00 Inc GST
    289134
    Bulgin socket surface mt 7 pin 3A kit 51567 KIT
    		$25.00 Inc GST
    289136
    Bulgin socket surface mt BNC 50 Ohm kit
    		$36.00 Inc GST
    289137
    Bulgin socket surface mt BNC 75 Ohm kit 51573
    		$36.00 Inc GST

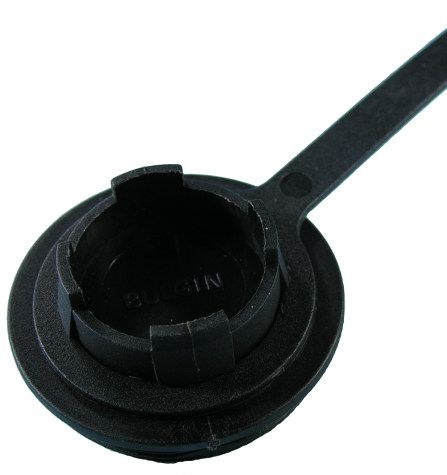

  • Bulgin Buccaneer Cap for Plug
    Bulgin Buccaneer cap for plug, for protection when not in use. Doubles as assembly tools for fitting the inserts into the housings. With a retaining strap that can clip to the body of the plug. Suits PLUGS only.
    Part No. Description Price Quantity
    289150
    Bulgin cap/assembly tool for plugs 51576 PX0734
    		$2.50 Inc GST
    289151
    Bulgin cap/assembly tool for sockets 51575 PX0733
    		$2.50 Inc GST
  • Polarised Plugs and Sockets, Chrome Plated Brass
    Polarised plugs and sockets rated 3A, 2,3 or 4 pin, chromed finish with screw-on cap for socket, budget product.
    Part No. Description Price Quantity
    289200
    Plug & socket surf mt chrome 2 pin+ 48007 RWB194
    		$41.00 Inc GST
    289202
    Plug & socket surf mt chrome 4 pin+ RWB1780
    		$44.00 Inc GST
    289203
    Plug 2Pin chromed with lockring+ 48004 RWB563
    		$22.00 Inc GST
    289204
    Plug 3Pin chromed with lockring+ RWB564
    		$34.00 Inc GST
    289205
    Plug 4Pin chromed with lockring+ 48002 RWB565
    		$36.00 Inc GST
  • Polarised 2 pin Rubber Plug and Socket
    Polarised plug and socket, 2 pin, rubber plug and chromed finish socket with plastic cap, budget product.
    Part No. Description Price Quantity
    289206
    Plug & socket surf mt rubber/chrome 2pin 48015 RWB561
    		$18.00 Inc GST
    289220
    Plug cig lighter Sutars+ RWB2723
    		$15.00 Inc GST
  • DIN Panel Mount DC Socket
    DIN DC socket, flush mount with rubber cap. DIN 4165 connectors provide for a better electrical connection than cigarette lighter connectors. Rated 12V 8A. Cut d18mm, intrusion 50mm behind panel face, screw terminals.
    Part No. Description Price Quantity
    289210
    Socket Euro 12V 16A panelmount with cap 4916
    		$18.00 Inc GST
  • DIN DC Plug
    DIN4165 DC plug, rated 12V 8A. Crush terminals, max cable size 5mm.
    Part No. Description Price Quantity
    289211
    Plug Euro 15A 12V 4914
    		$10.00 Inc GST

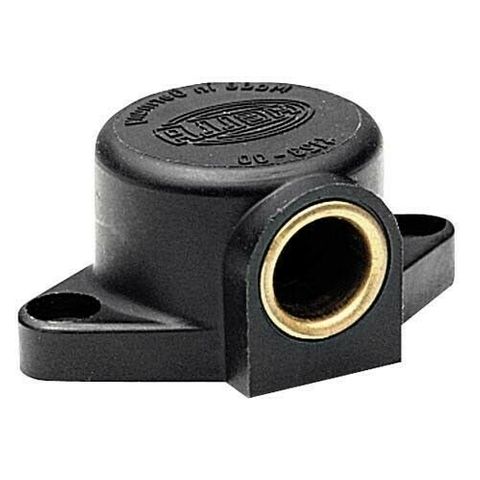

  • DIN Surface Mount DC Socket
    DIN DC socket, surface mount. Rated 12V 8A. Dimensions 57mmW x 37mmH,protrusion 25mm, screw terminals.
    Part No. Description Price Quantity
    289212
    Socket Euro 12V 16A surface mount 4917
    		$17.00 Inc GST

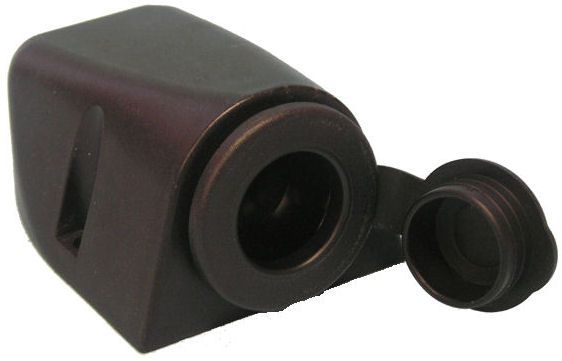

  • Socket 12V cig lighter surface mount+
    Part No. Description Price Quantity
    289221
    Socket 12V cig lighter surface mount+ RWB2722
    		$28.00 Inc GST
  • SUTARS Flush mount Cigarette Lighter Socket with Rectangular Flange
    Black plastic flush mount socket for cigarette lighter type plug, rectangular flange 56x32mm+cap. Intrusion 50mm cutxd27mm, 6.3mm spade terminals, not for cigarette lighters.
    Part No. Description Price Quantity
    289222
    Socket 12V cig lighter flush mount rect+ RWB2720
    		$18.00 Inc GST

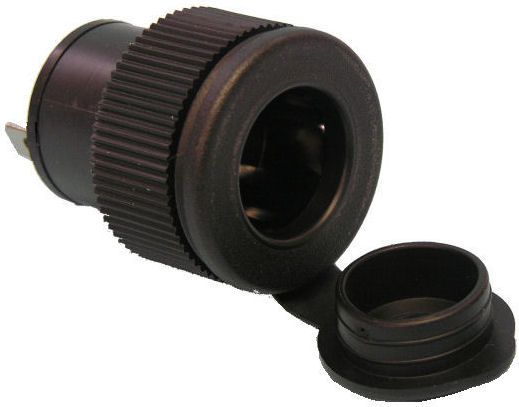

  • SUTARS Chassis mount Cigarette Lighter Type Socket
    Black plastic chassis mount socket for cigarette lighter type plug. OD36mm, cut d30mm, panel 10mm max,intrusion 50mm, 6.3mm spade terminals, not for cigarette lighters.
    Part No. Description Price Quantity
    289223
    Socket 12V cig lighter flush d36cut d30+ RWB2724
    		$22.00 Inc GST

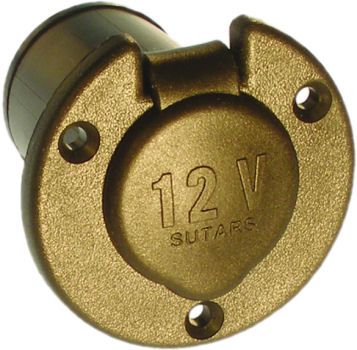

  • SUTARS Flush mount Cigarette Lighter Type Socket with Round Flange
    Black plastic flush mount socket for cigarette lighter type plug, round flange d45mm + cap. Intrusion 50mm, cut d30mmmm, 6.3mm spade terminals, not for cigarette lighters.
    Part No. Description Price Quantity
    289224
    Socket 12V cig lighter flush mt round + RWB2721
    		$18.00 Inc GST

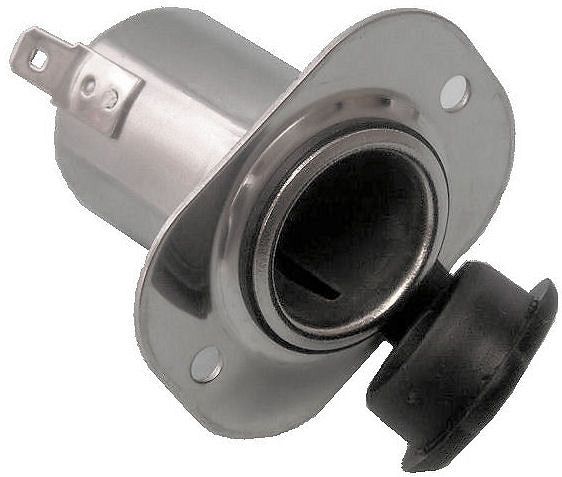

  • lush Mount Stainless Cigarette Lighter Type Socket with Rectangular Flange
    Flush mount socket for cigarette lighter type plug, stainless steel, rectangular flange 54x39mm+ cap. Intrusion 55mm, cut d29mm Connectors 6.3mm spade
    Part No. Description Price Quantity
    289225
    Socket 12V cig lighter flush rect ss+ RWB2820
    		$27.00 Inc GST

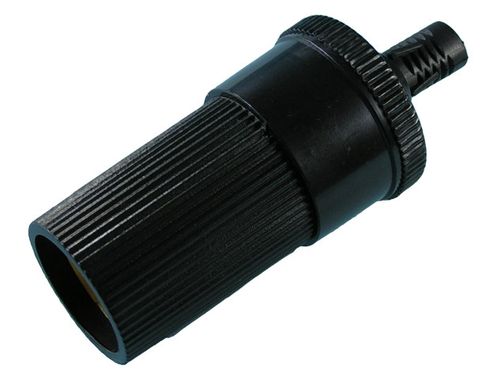

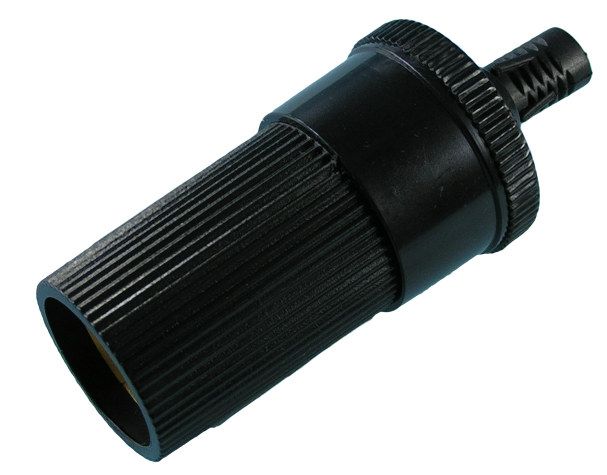

  • n-line Socket for Cigarette Lighter Type Plug
    In-line socket for cigarette lighter type plug. Dimensions d32mm x 75mm. Solder spade connectors. Black plastic, cannot be used as a cigarette lighter.
    Part No. Description Price Quantity
    289226
    Socket 12V cig lighter in-line 45077 PS-2003
    		$11.00 Inc GST

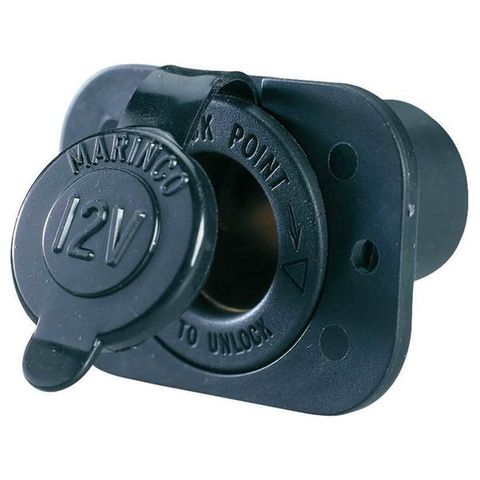

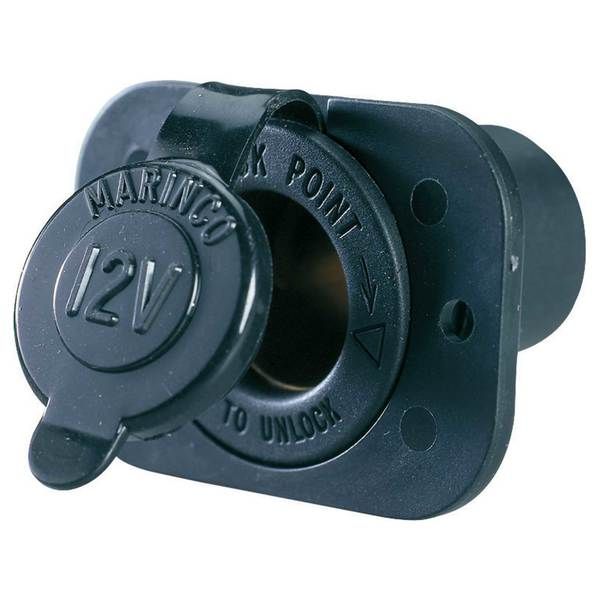

  • Part No. Description Price Quantity
    289227
    Plug MARINCO lighter type 12V 12VPG 113256
    		$16.00 Inc GST
  • Socket lighter 12/24V+cap+rect flge we
    Part No. Description Price Quantity
    289230
    Socket lighter 12/24V+cap+rect flge bk
    		$19.00 Inc GST
    289231
    Socket lighter 12/24V+cap+rect flge we DS1211
    		$19.00 Inc GST

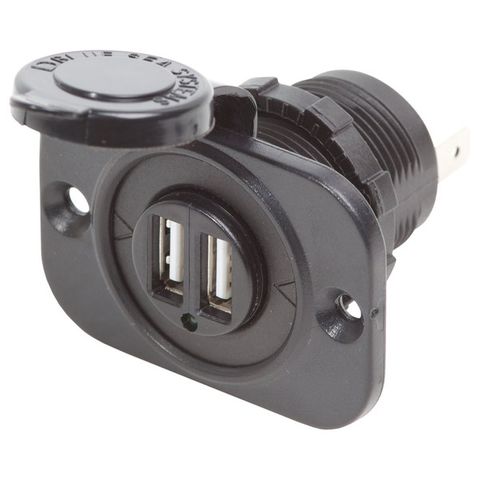

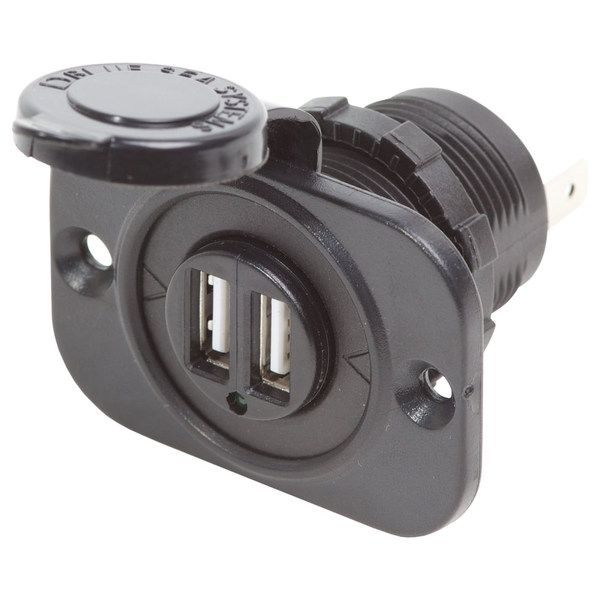

  • Flush mount Twin USB Sockets with Rectangular Flange
    Twin USB2 outlet for charging mobile devices. Rated 2x2,1A. Includes waterproof cap. Cut d29mm. Flange 60mm x 42,5mm
    Part No. Description Price Quantity
    289232
    Socket 2xUSB 12/24Vin, 2x 5V2,1A out, bk
    		$31.00 Inc GST
    289237
    Socket USB A 5V 3A plus USB C 5V 3A input 12/24V, black/grey 81103BL
    		$39.00 Inc GST

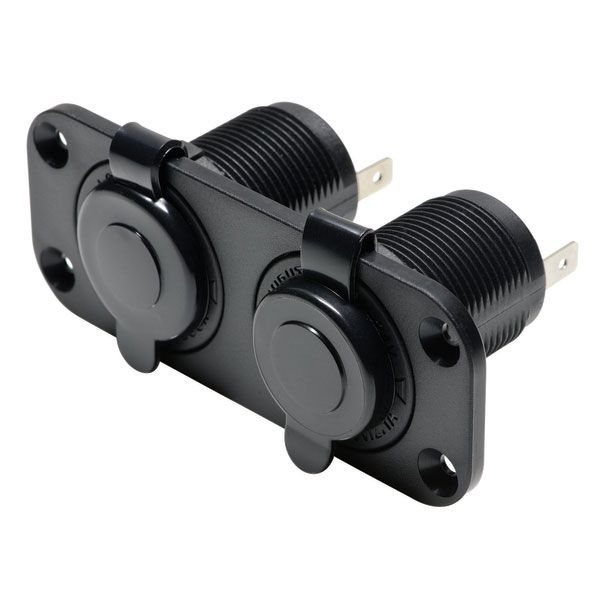

  • Two & Three Gang Flanges
    Two and three gang flanges for fitting multiple lighter and USB outlets or meters. NB prices are for flanges only, order inserts 289230/2 as required.
    Part No. Description Price Quantity
    289233
    Flange 2 gang 105mm x 42mm black DS5
    		$7.00 Inc GST
    289234
    Flange 3 gang 150mm x 42mm black DS8
    		$10.00 Inc GST
  • Part No. Description Price Quantity
    289236
    Mounting surface for lighter/USB sockets DS8
    		$10.00 Inc GST

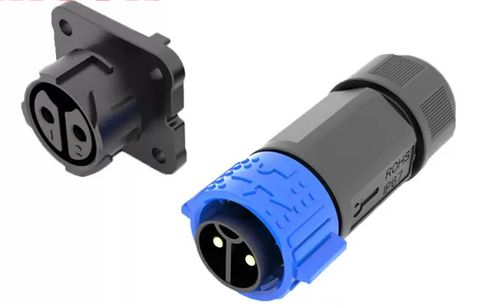

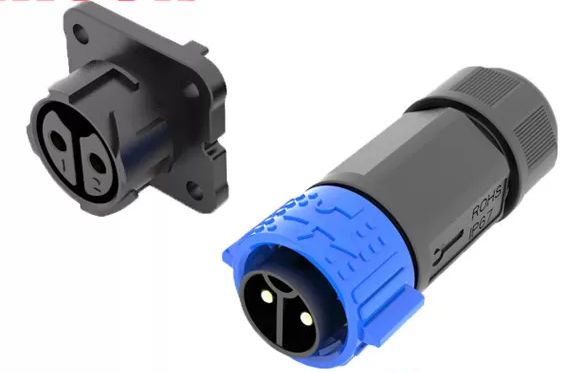

  • Plug & Socket Surface Mount 50A
    These surface mount plug and socket kits are ideal for high current applications like trolling motors and fishing reels/downriggers. The plug is pushed on and retained by a twist release cap. Waterproof to IP67, they are rated 50A for up to 48Vdc or 600Vac. The plug is sealed by a gland that suits cables with an OD of 10mm to 18mm. Termination on both the plug and sockets is by double screw terminals, that suit 10mm² wires, at a pinch up to 16mm² wires can be fitted. The surface mount socket is supplied with a rubber sealing cap for when not in use.
    Part No. Description Price Quantity
    289239
    Plug & socket waterproof IP67 surface mount 50A 2 pin JNI M25-2
    		$75.00 Inc GST

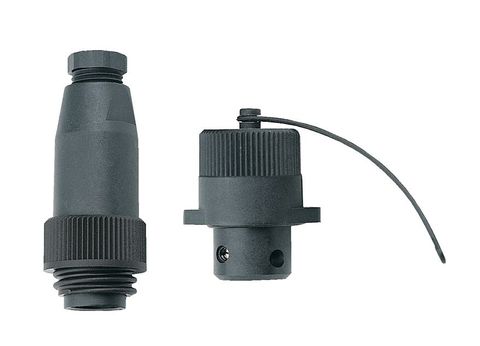

  • MARINCO Waterproof Plug and Socket 40A
    MARINCO 36V 40A plugs and sockets. Splashproof with twist lock feature. Socket accepts wire 5-10mm. Plug accepts wire 2- 8mm. Cut d28mm, flange 60x43mm, intrusion 50mm, protrusion 55mm
    Part No. Description Price Quantity
    289240
    Plug & socket MAR panel mt 2 pin 36V40A+ 12VCPS2 -
    		$96.00 Inc GST
    289241
    Plug & socket MAR panel mt 3 pin 36V40A+ 12VCP 114274
    		$86.00 Inc GST
  • Part No. Description Price Quantity
    289244
    Plug additional 2 pin up to 36V 40A MARINCO 12VBPS2 -
    		$45.00 Inc GST
    289245
    Plug additional 3 pin up to 36V 40A MARINCO 12VBP -
    		$48.00 Inc GST
  • Part No. Description Price Quantity
    289246
    Socket adaptor 3pin13mm MAR WP 36V40A+ 12VBRAD -
    		$47.00 Inc GST
  • MARINCO Three Pin 70A DC Plug and Socket
    Hi current DC plug and socket continuous rated 70 A at 12V or 24V and 60A at 36V or 48V for two or three wire connections. Ideal for trolling motors and fishing reels. Flush mount socket with removable rectangular two hole flange and weatherproof cap. Accepts up 10sq mm wire sizes.

    Downloads

    Part No. Description Price Quantity
    289247
    Plug & socket MAR panel mt 3 pin 48V70A+ 12VCPS3 114278
    		$104.00 Inc GST
    289248
    Socket only MAR panel mt 3 pin 48V70A+ 12VBRS3 -
    		$75.00 Inc GST
    289249
    Plug only MARINCO 3 pin up to 48V 70A 12VBPS3 -
    		$64.00 Inc GST
  • MAGCODE dc Outlets and Clips
    MAGCODE IP 59 dc connectors consist of a port and clip, the connection is secured magnetically.Contacts switched off magnetically unless a clip is fitted. Opposite magnetic polarity in 12V and 24V elements. Rated 25A

    Downloads

    Part No. Description Price Quantity
    289260
    Plug Magcode kit 12V 25A+ HMPS12VKIT
    		$73.00 Inc GST
    289261
    Plug Magcode clip 12V 25A+ HMPS12VCP
    		$40.00 Inc GST
    289262
    Socket Magcode port 12V 25A+ HMPS12VPT
    		$41.00 Inc GST
    289265
    Plug Magcode kit 24V 25A+ HMPS24VKIT
    		$67.00 Inc GST
    289266
    Plug Magcode clip 24V 25A+ HMPS24VCP
    		$37.00 Inc GST
    289267
    Socket Magcode port 24V 25A+ HMPS24VPT
    		$38.00 Inc GST
  • Plug MagcodePro kit 12V 25A+
    Part No. Description Price Quantity
    289270
    Plug MagcodePro kit 12V 25A+ HMPSPRO12VKIT
    		$115.00 Inc GST
    289271
    Plug MagcodePro clip 12V 25A+ HMPSPRO12VCP
    		$53.00 Inc GST
    289272
    Socket MagcodePro port 12V 25A+ HMPSPRO12VPT
    		$67.00 Inc GST

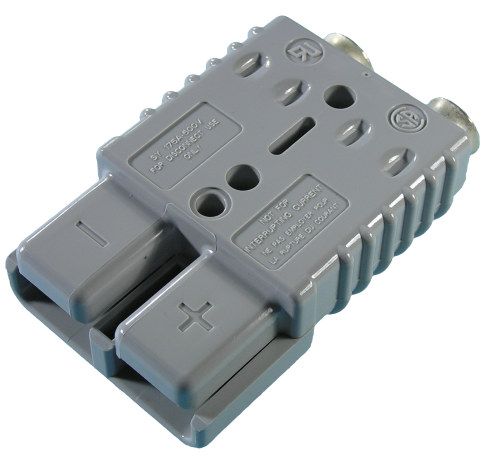

  • Anderson Plugs
    Anderson plugs for high current connections, rated 50A & 175A respectively, up to 32V DC. Crimp/solder, not w/proof. Polarised.Two of one of these part numbers make a pair. Silver plated copper contacts. Stainless steel leaf spring
    Part No. Description Price Quantity
    289284
    Plug Anderson 50A SY50
    		$30.00 Inc GST
    289285
    Plug Anderson 175A SY175
    		$40.00 Inc GST
  • Part No. Description Price Quantity
    289286
    Plug Anderson 2 x 50A with hinged caps in surface mounted housing 81163BL
    		$35.00 Inc GST
    289282
    Plug Anderson 2 x 50A with hinged caps in surface mounted housing 81110BL
    		$35.00 Inc GST
  • Socket 15A DC, Flat Pin Connectors In-line
    Plug 15A DC, flat pin connectors in T configuration, in-line mount. Provide an excellent electrical connection. Dimensions d42mm x 70mm. Polarised, the horizontal terminal is negative.
    Part No. Description Price Quantity
    289291
    Socket 12-32V 15A polarised in-line 45021 438/32TR ELE:PS-2073
    		$21.00 Inc GST
  • HELLA Flat 7 Pin Trailer Plug
    Hella flat 7 pin trailer plug to AS4177.5. Impact resistant, UV stabilised plastic.
    Part No. Description Price Quantity
    289300
    Plug Trailer flat AS4177.5 7 pin 4921
    		$17.00 Inc GST

    Related Products

  • HELLA Flat 7 Pin Trailer Socket
    Hella socket for flat 7 pin trailer plug to AS4177.5. Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance, spring loaded lid. Max total load 20A@12V or 10A@24V.
    Part No. Description Price Quantity
    289305
    Socket trailer flat AS4177.5 7 pin 4920
    		$18.00 Inc GST
  • HELLA Round 7 Pin Trailer Plug
    Hella round 7 pin trailer plug to DIN ISO & AS4735. Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance. Max total load 20A@12V or 10A@24V.
    Part No. Description Price Quantity
    289310
    Plug Trailer round DIN ISO AS4735 7 pin 4902
    		$20.00 Inc GST

    Related Products

  • HELLA Round 7 Pin Trailer Socket
    Hella socket for round 7 pin trailer plug to DIN ISO & AS4735. Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance. Max total load 20A@12V or 10A@24V.
    Part No. Description Price Quantity
    289315
    Socket Trailer round DIN ISO AS4735 7pn 4912
    		$15.00 Inc GST
