Battery Management Clusters

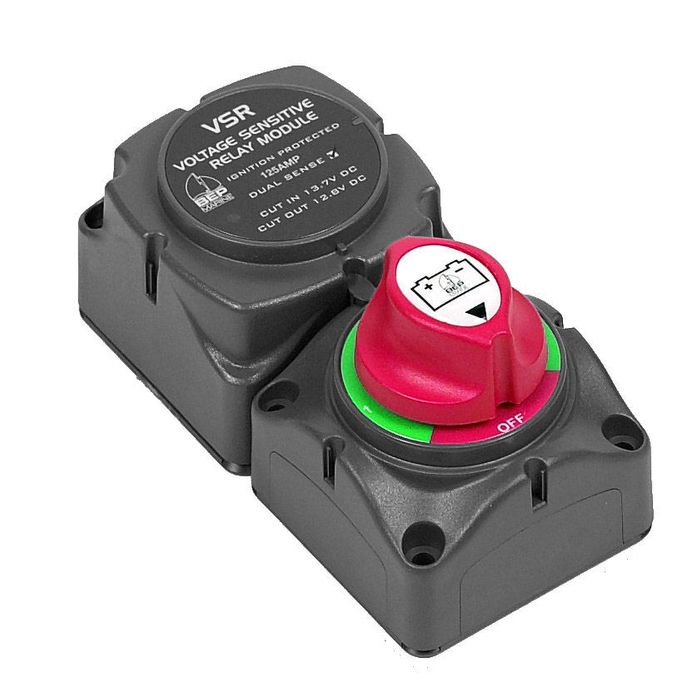

  • BEP Battery Distribution Cluster for Single Engine with Two Battery Banks
    The 714-140A-DVSR uses a dual sensing DVSR [710-140A]. This system ensures that you will always have a fully charged reserve battery. When the switch is in position one, battery one becomes the sensing battery for the VSR. Battery two, which is in isolation, is charged through the VSR when the engine is running to ensure that it is always fully charged. When the switch is in position two, battery two becomes the sensing battery and battery one is charged through the VSR. The fact that there is always a fully charged battery in reserve is a huge safety benefit.

    Downloads

    Part No. Description Price Quantity
    202000
    Battery switch cluster 1/1+2/2 w DS VSR+ 714-140A-DVSR 113654
    		$279.00 Inc GST

    Related Products

  • BEP Battery Distribution Cluster for Single Engine with Two Dedicated Battery Banks
    To be used in single outboard with a dual battery bank, single alternator with a dual battery bank or in a twin alternator with a dual battery bank. Select part number depending on whether the unit is to be mounted in horizontal or vertical orientation.

    Downloads

    Part No. Description Price Quantity
    202005
    Battery switch cluster 2bank&EP horizntl 715-H 113552
    		$180.00 Inc GST
    202006
    Battery switch cluster 2bank&EP vertical 715-V 113554
    		$185.00 Inc GST

    Related Products

  • BEP 716-SQ-140A Battery Switch Cluster with VSR
    This cluster replaces a selector switch. Seperate start and house systems protect from voltage spikes. Automatic paralleling and separation. For panel mount option see 203010. 136mmW x 136mmH x 75mmD

    Downloads

    Part No. Description Price Quantity
    202010
    Battery switch cluster 2 bank+VSRsquare+ 716-SQ-140A-DVSR 113684
    		$401.00 Inc GST
  • BEP 716-H and 716-V Battery Switch Clusters with VSR
    The BEP 716 battery switch clusters are also available as in-line modules, either as 716-H-100A-VSR horizontal or 716-V-100A-VSR vertical. For panel mount option see 203015. 276mm x 69mm x 75mmD

    Downloads

    Part No. Description Price Quantity
    202015
    Battery switch cluster 2 bank+VSR horiz+ 716-H-140A-DVSR 114070
    		$383.00 Inc GST
    202016
    Battery switch cluster 2 bank+VSR vert+ 716-V-140A-DVSR 114074
    		$385.00 Inc GST
  • BEP 715-S Battery Selector Switch Cluster
    715-S is for boats with 2 engines and 2 battery banks. House loads are switched to either or both batteries. Can also be used to parallel batteries. No VSR. For panel mounting use 203106. 138mmx69mmx75mmD.

    Downloads

    Part No. Description Price Quantity
    202020
    Battery switch cluster 2bank+houseselect 715-S 113666
    		$206.00 Inc GST

    Related Products

  • BEP 718-140A-DVSR Battery Switch Cluster with DVSR
    The 718-100A is designed for 2 engine systems when it is not possible to have the alternators connected in parallel. The house battery is charged from the port engine via the VSR. 205mmWx136mmHx75mmD
    Part No. Description Price Quantity
    202030
    Battery switch cluster 3 bank+1 VSR 718-140A-DVSR 114078
    		$445.00 Inc GST
  • BEP 717-140A-DVSR Battery Selector Switch Cluster with VSR
    BEP 717-140A-DVSR is designed for twin engine installations with two start batteries and a house bank. 2 VSRs enable the house bank to be charged by either or both alternators. 205mmWx136mmHx75mmD.

    Downloads

    Part No. Description Price Quantity
    202035
    Battery switch cluster 3 bank+2 VSR 717-140A-DVSR 113688
    		$658.00 Inc GST
  • BEP Three Battery Banks Selector with VSR
    The VSR and Emergency parallel switch are combined into one voltage-sensitive switch, and that switch is able to be remote-operated. The layout allows all cables to be attached from the bottom of the cluster. Offers the same features as the 717-140A-DVSR Three battery banks.

    Downloads

    Part No. Description Price Quantity
    202037
    Battery switch cluster 3 bank+2MDVShoriz 80-716-0018-00 -
    		$1,243.00 Inc GST
  • BEP 719-140A-DVSR Battery Selector Switch Cluster with VSR
    The 719-140A-DVSR is designed for triple engine installations. Using multiple DVSR's off each start battery, giving combined charge from all three engines into the house battery. 205mmx205mmx75mmD.

    Downloads

    Part No. Description Price Quantity
    202040
    Battery switch cluster 4 bank+3 VSR 719-140A-DVSR -
    		$1,248.00 Inc GST

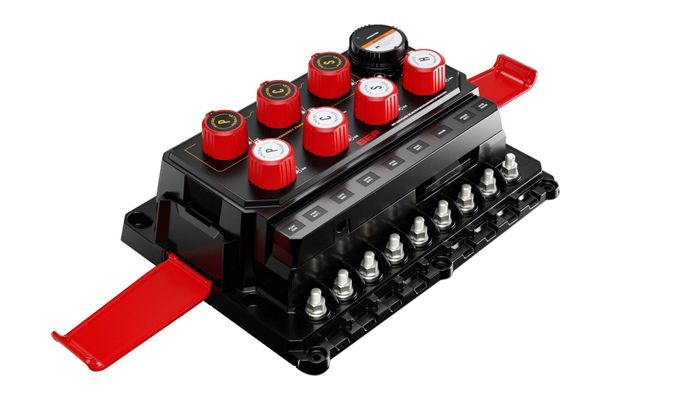

  • BEP Smart Battery Hub Twin Engine
    BEP’s innovative Smart Battery Hub [SBH] is a world-first intelligent battery management system for vessels running two or more outboards, sterndrives, or multiple inboard engines. Smart Battery Hub simplifies battery management with remotely activated switches, automatic dual direction Voltage Sensitive Switching [VSS] and emergency parallel functionality, neatly housed in a robust, easy-to-install, ignition-protected IPX7 enclosure. VSS voltage thresholds can be configured to suit, or enabled/disabled with each installation. Switch inputs can be assigned to any function and two additional sensor inputs can be used for monitoring volts, fluid levels and temperature. SBH monitors and transmits individual battery voltages and full house bank state of charge over NMEA2000, for easy integration with multi-function displays. Remote battery switching is operated via NMEA2000 or wired switches, with physical manual override of all battery switches for safety and servicing.

    Downloads

    Part No. Description Price Quantity
    202090
    BEP Smart Battery Hub for twin engines 80-716-0030-00 114065
    		$3,176.00 Inc GST
    202092
    BEP Smart Battery Hub for triple engines 80-716-0031-00 114066
    		$3,807.00 Inc GST
    202099
    Sensor temp for Smart Battery Hub with 15m lead BEP 80-716-0032-00 114069
    		$120.00 Inc GST

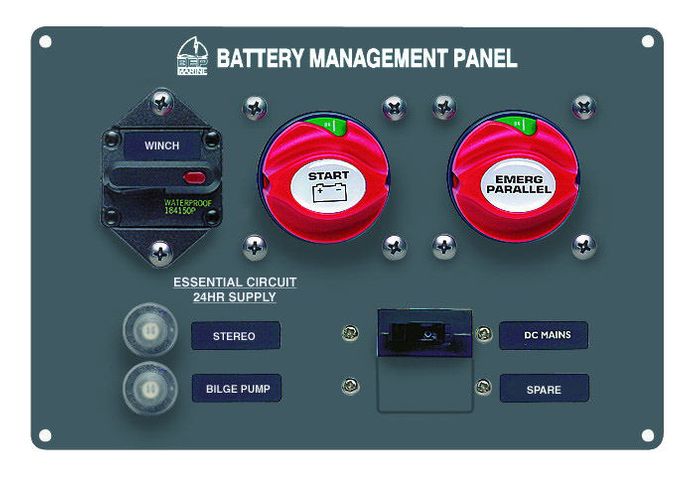

  • BEP Battery management panel 800-MS4
    The 800-MS4 is a management panel for smaller boats. 275A battery switches for Start & Parallelling. 100A main and 100A winch breakers.Two reset breakers for essential services plus room for another. 351mmWx260mmH.
    Part No. Description Price Quantity
    202100
    Panel Battery Management BEP 800-MS4+ 800-MS4 113669
    		$1,322.00 Inc GST

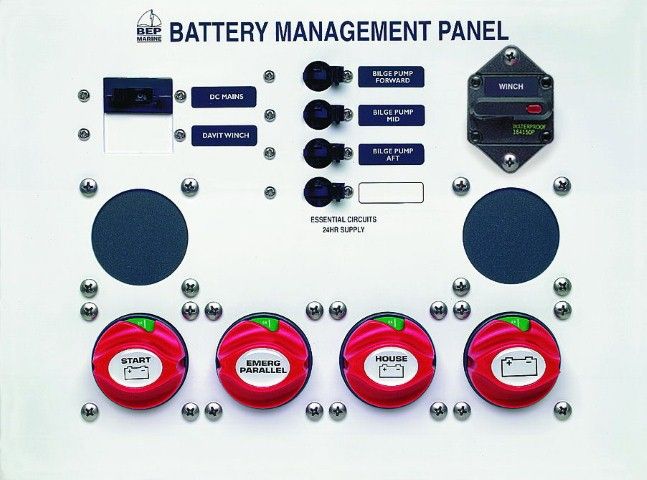

  • BEP Battery management panel 800-MS1
    The 800-MS1 battery management panel is designed for power or sail boats between 10 - 12 meters with single engines. 275A battery switches for Start, House, Emergency Parallelling and an additionl switch for a possible third battery bank. Mounting positions for two more battery switches or small VSR's. 100A circuit main switch circuit breaker and 135A winch breaker. Four Carlingswitch B breakers for essential services [3x15A, 1x5A] plus room for mounting another Carlingswitch C circuit breaker. Dimensions 351mm [w] x260mm [h] x 75mm [d]. White panel, optionally available in black by special order.
    Part No. Description Price Quantity
    202110
    Panel Battery Management BEP 800-MS1+ 800-MS1 113677
    		$1,336.00 Inc GST

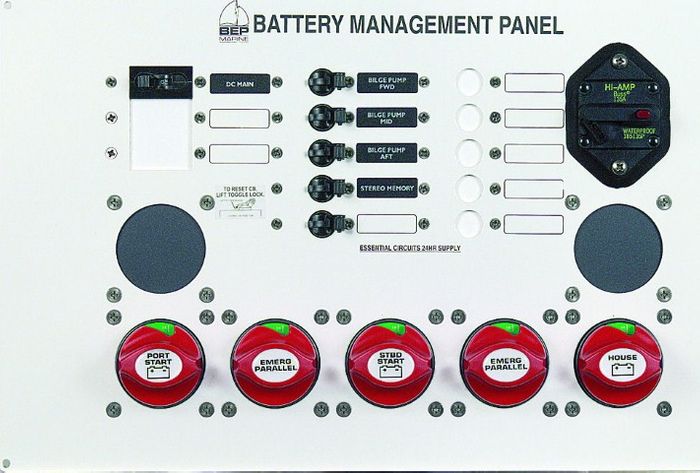

  • BEP Battery management panel 800-MS2
    The 800-MS2 battery management panel is designed for power boats between 10 - 12 meters with twin engines. 275A battery switches for two Start, House and two Emergency Parallelling and an additionl switch for a possible third battery bank. Mounting positions for two more 275A battery switches or small VSR's. 100A circuit main switch circuit breaker and 135A winch breaker. Five Carlingswitch B breakers for essential services [4x15A, 1x5A] plus room for mounting another 2 Carlingswitch C circuit breakers. Dimensions 463mm [w] x 281mm [h] x 75mm [d]. White panel, optionally available in black by special order.
    Part No. Description Price Quantity
    202120
    Panel Battery Management BEP 800-MS2+ 800-MS2 113678
    		$1,534.00 Inc GST

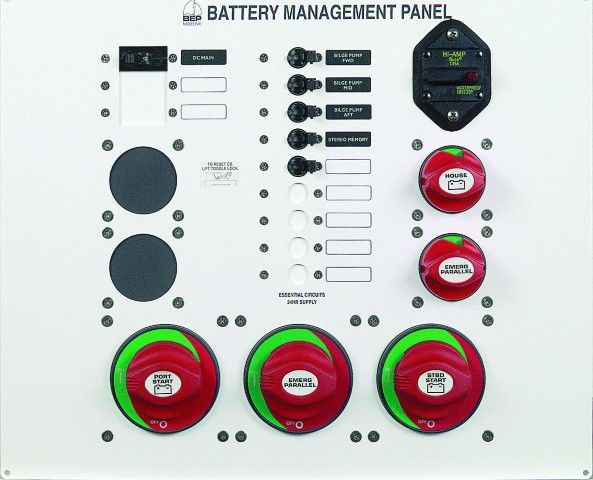

  • BEP Battery management panel 800-MS3
    The 800-MS3 battery management panel is designed for power boats between 12 - 16 meters with larger twin engines. 550A battery switches for two Start and Emergency Parallelling plus 275A battery switches House and Emergency Parallelling. Mounting positions for two more 275A battery switches or small VSR's. 100A circuit main switch circuit breaker and 150A winch breaker. Five Carlingswitch B breakers for essential services [4x15A, 1x5A] plus room for mounting another 2 Carlingswitch C circuit breakers. Dimensions 463mm [w] x 281mm [h] x 75mm [d]. White panel, optionally available in black by special order.

    Downloads

    Part No. Description Price Quantity
    202130
    Panel Battery Management BEP 800-MS3+ 800-MS3 113679
    		$1,956.00 Inc GST
