DC Interfaces
DC Circuit control and monitoring modules to interface the CZone network with traditional mechanical switches and external sensors and meters. DC Output interfaces provide an intelligent replacement for traditional circuit breaker and fuse panels.
1 to 15 of 15 results
-

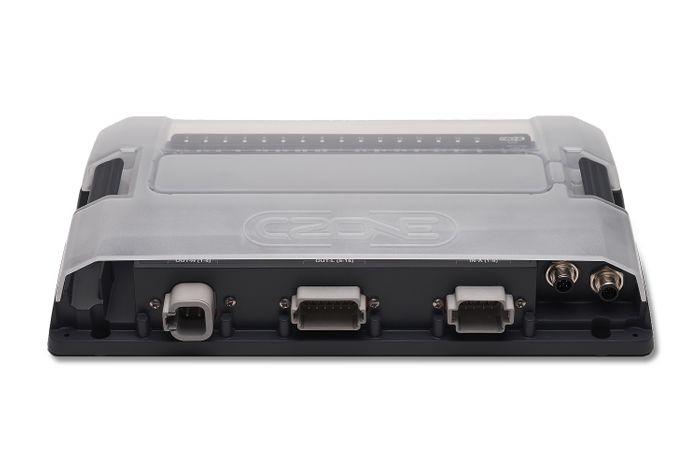

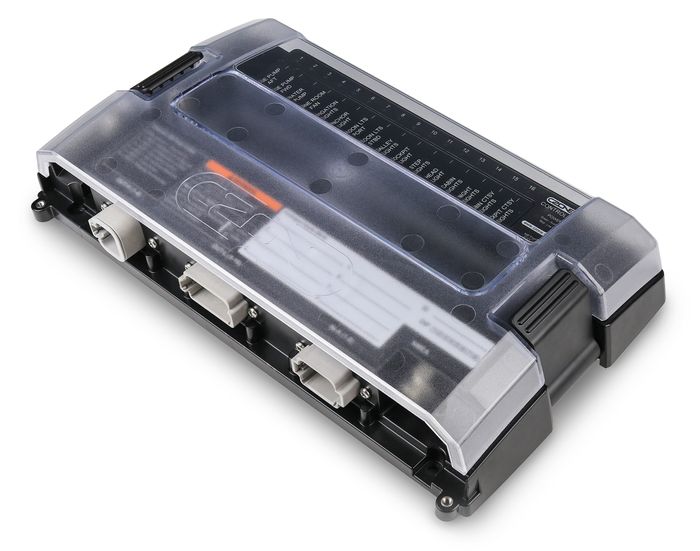

CZONE Control 1 InterfaceThe Control 1 combines multiple input and output devices in to a single module, minimizing installation, interconnections and footprint. The Control 1 incorporates many of the core features and benefits of the fully featured Combination Output Interface COI, but has been re-engineered to offer improved cost-per-channel value. The Control 1 features the same rugged design as the fully featured COI with IPX5 water ingress protection and complete mechanical fuse and bypass on all circuits as required by ABYC/CE. Industry standard Deutsch connectors provide "plug and play" installation.
Part No. Description Price Quantity 400100CZone Control 1 connectors 80-911-0122-00 112918$2,210.00 Inc GST -

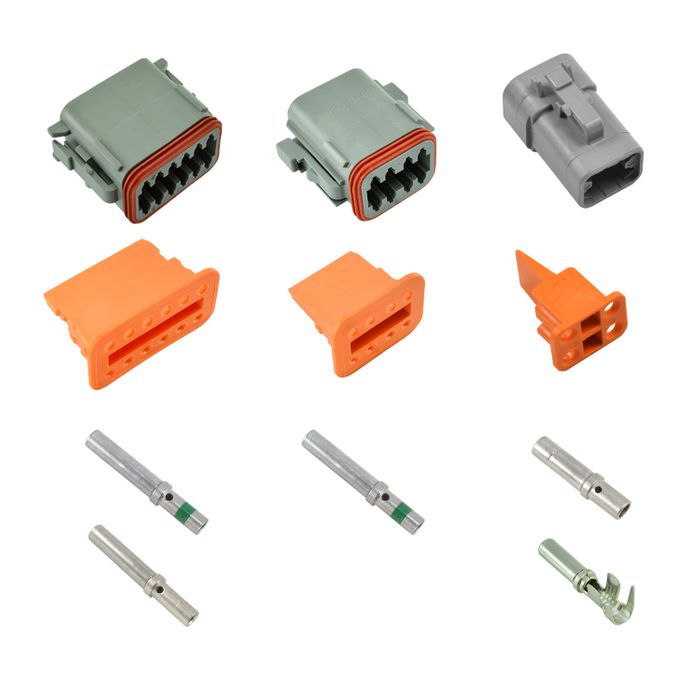

CZONE Control 1/COI Deutsch Connector KitDeutsch Connector Kit contains Deutch Connectors, Locking Wedges and Contact Pins necessary to connect bare wires to Control1/Combination Output Interface High Outputs, Low Outputs and monitoring Inputs.
Part No. Description Price Quantity 400109CZone CONTROL 1 connector kit - Deutsch plugs, contacts, wafers and seals 80-911-0131-00 SP11112918$125.00 Inc GST -

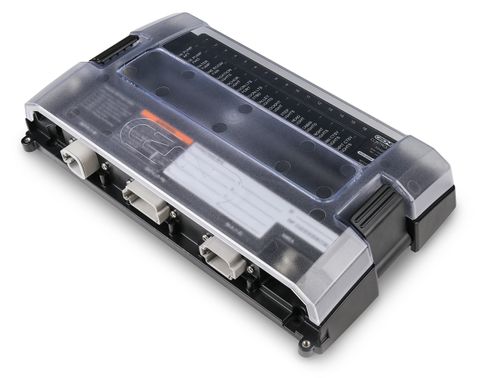

CZONE COI with ConnectorsThe Combination Output Interface or COI combines multiple input and output devices in to one module, providing a high density 30 channel module which minimizes installation, interconnections and footprint, while delivering best value per circuit. The COI features the same proven, rugged CZone design including IPX5 water ingress protection and complete mechanical fuse plus bypass on all circuits as required by ABYC/CE. Industry standard Deutsch connectors provide "plug and play" installation.
Part No. Description Price Quantity 400110CZone Combination Output Interface COI with connectors 80-911-0119-00 112912$2,970.00 Inc GST -
Part No. Description Price Quantity 400117CZone COI cable cover 80-911-0123-00 112916$38.00 Inc GST -

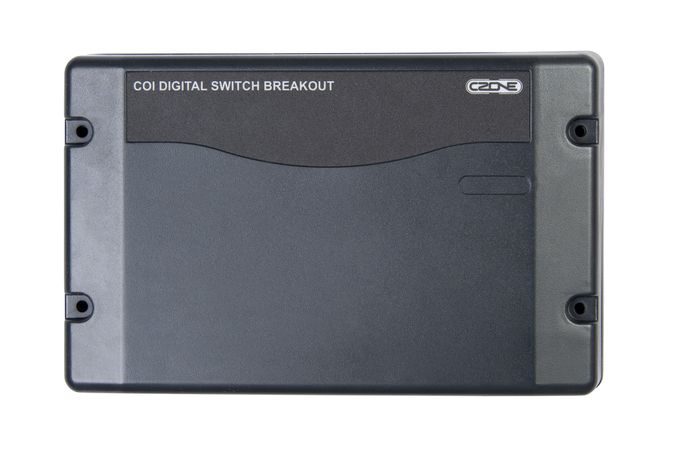

CZONE COI Digital Switch Breakout 6-WayThe COI Digital Switch Breakout DSB is the interface between the COI and up to 6 CZone digital switches push button or rocker. The digital switches include dimmable LED backlighting, systems on, fault codes and a plug and play harness simplifying installation.
Part No. Description Price Quantity 400120CZone COI dig switch breakout 80-911-0134-00 112909$491.00 Inc GST -

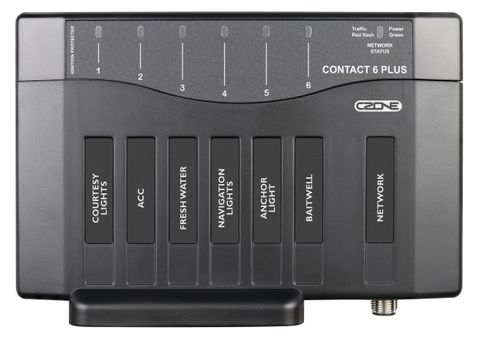

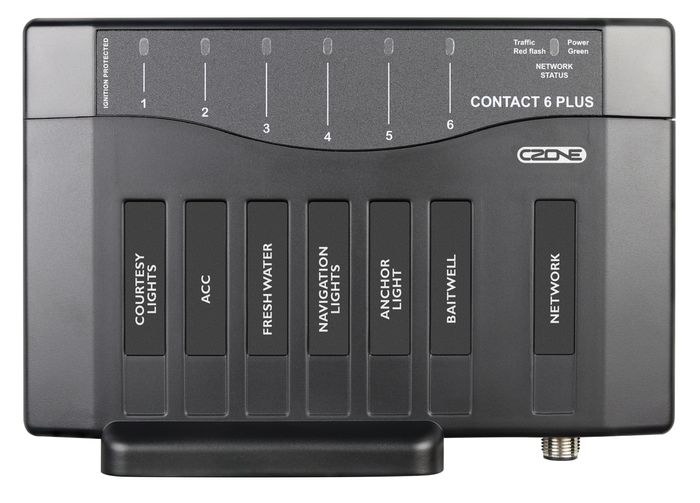

CZONE Contact 6 Plus InterfaceUtilising proven CZone digital switching technology the Contact 6 PLUS is a robust and affordable digital switching solution. Featuring 6x 15A solid state ignition protected fused outputs with circuit bypass for system redundancy. The Contact 6 PLUS can be networked into an existing CZone system or installed stand-alone with the CZone Waterproof Keypads or compatible Multi-Function Displays.
Part No. Description Price Quantity 400140CZone Contact 6 Plus with plug & seal 80-911-0160-00 112814$572.00 Inc GST -

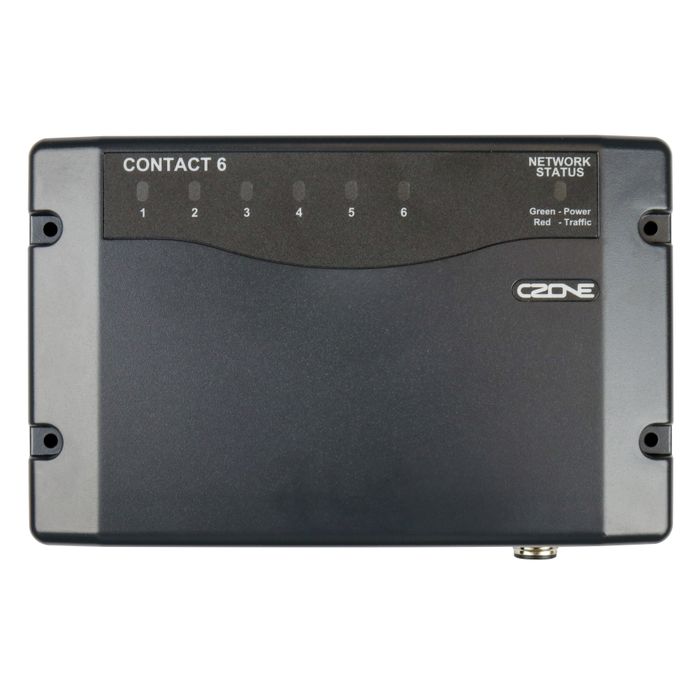

CZONE Contact 6The Contact 6 is a digital contol module that can be networked with other CZone products or stand alone. The Contact 6 has six independent channels that are positively or negatively switched and is ideal for smaller marine applications or recreational and specialty vehicles.
Part No. Description Price Quantity 400150CZone Contact 6 with PTC fusing and seals & plugs 80-911-0140-00 112817$464.00 Inc GST 400152CZone Contact 6 unfused with seals & plugs 80-911-0156-00 112817$419.00 Inc GST -

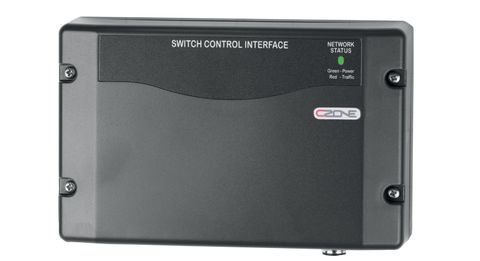

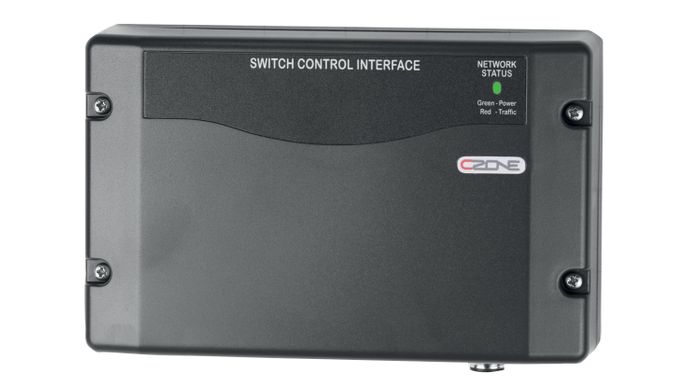

CZONE Switch Control Interface SCIThe Switch Control Interface provides an interface between the CZone network and traditional mechanical switches that manufacturers and users are familiar with. The SCI simplifies your wiring, supports your existing choice of switches, protects against failures and allows for expanding installation options.
Part No. Description Price Quantity 400160CZone SCI Switch Control Interface 80-911-0011-00 112824$597.00 Inc GST -

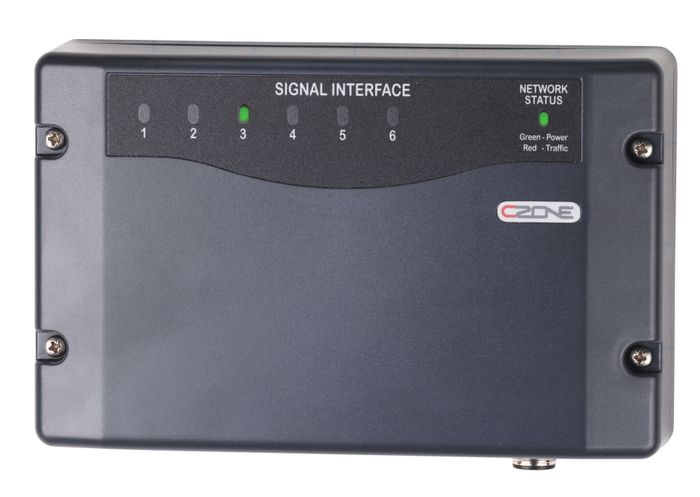

CZONE SIgnal Interface SIThe Signal Interface connects the CZone system to your external sensors, alarms and switching devices. The SI allows intelligent, automated operation of circuits depending on the state of the input.
Part No. Description Price Quantity 400170CZone Signal Interface SI w seals & connectors 80-911-0013-00 112828$702.00 Inc GST -

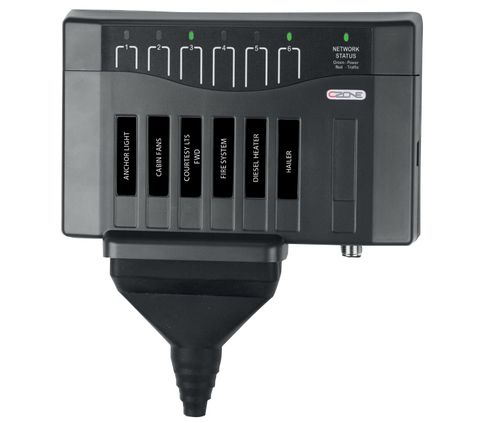

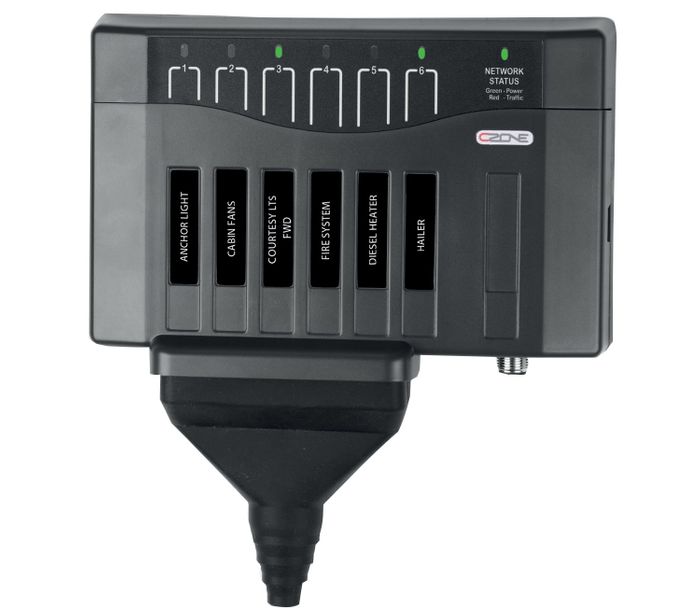

CZONE Output interface OIThe Output Interface OI provides an intelligent replacement for traditional circuit breaker and fuse panels. It has 6x high power, robust output channels which provide the power supply, control and fusing for a circuit as well as integrating many other built in features such as timers and dimmers. Connection to the unit is simple - a large 6 way plug allows connections to cables of up to 16 mm2 or 6AWG in size, or multiple smaller conductors. No need for specialized crimp terminals and expensive crimp tools to be carried for terminations to CZone, just a blade screwdriver. A protective flexible boot offers protection to the connections from harsh environment conditions.
Part No. Description Price Quantity 400180CZone OI Output Interface 80-911-0009-00 112820$1,457.00 Inc GST -

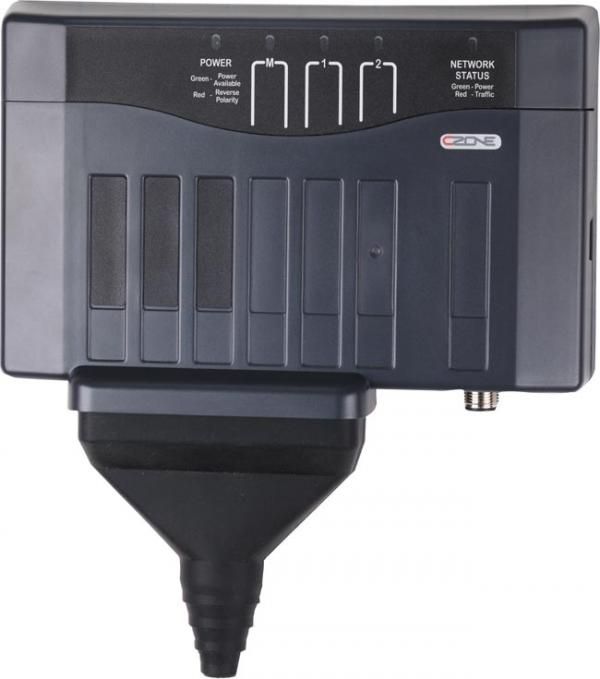

CZONE Motor Output Interface MOIThe Motor Output Interface has an output pair for controlling DC motors which require a reversal of polarity to change the direction of their mechanical operation. For example, a DC motor for an electric window mechanism will move the window up or down depending on the polarity of the feed to the motor. The MOI also incorporates two standard output channels such as is found on the OI.
Part No. Description Price Quantity 400190CZoneMOTOR OI INTERFACE c/w CON BOOT 80-911-0007-00 112816$1,182.00 Inc GST -

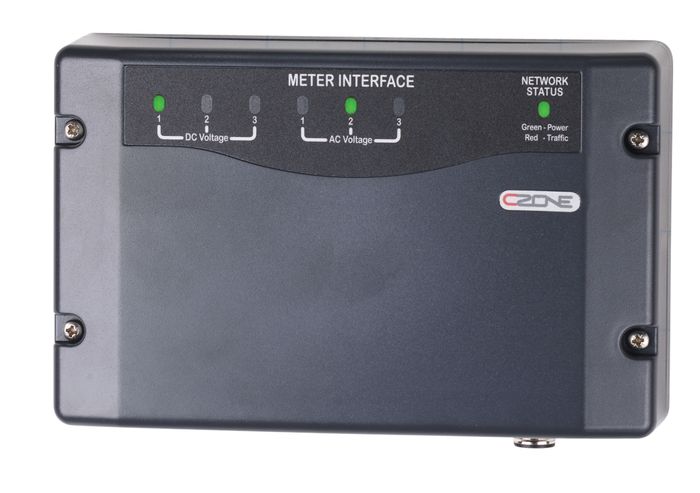

CZONE Meter Interface MIThe Meter Interface MI accepts inputs from external AC and DC power metering sensors such as AC and DC voltage and amps, AC kW, and DC battery capacity in amp hours and percent remaining. All with user definable high and low alarms.
Part No. Description Price Quantity 400200CZone Meter Interface w seal & plug 80-911-0005-00 112812$884.00 Inc GST -

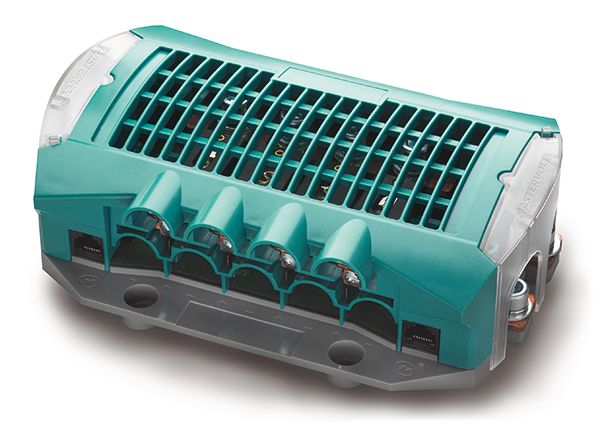

MasterVolt DC Distribution 500The DC Distribution 500 is the smallest distribution model available. It connects up to four DC devices, such as a battery charger, inverter, alternators and solar panels. With the plug & play cable it can be easily connected to the MasterBus network. The EasyView panel gives all fuses logical names, for instance, referring to the connected equipment, to ensure you receive understandable error notifications.
Downloads
Part No. Description Price Quantity 400300Masterbus DC Distribution 500 4 chanel distribution module 77020200 110554$599.00 Inc GST -

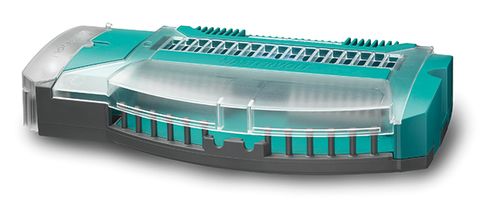

MasterVolt Digital DC 10x10AAs the pinnacle of system intelligence, the Mastervolt Digital DC 10x10A has ten 10 A outputs for all functions including lighting, pumps, electronics, etc. It comes standard with intelligent alarm functions and luxury options include; Follow me home [light stays on for a specific time]. Delayed dimming of lights [including ten built-in dimmers]. Alarm signal for overload. Every output has a hardware and software fuse. Reset the fuses via the MasterBus network. Possibility of higher currents [up to 100 A] with parallel switching of multiple outputs. Logical blocks.
Downloads
Part No. Description Price Quantity 400310Masterbus Digital DC 10x10A outputs 77020400 110558$1,305.00 Inc GST -

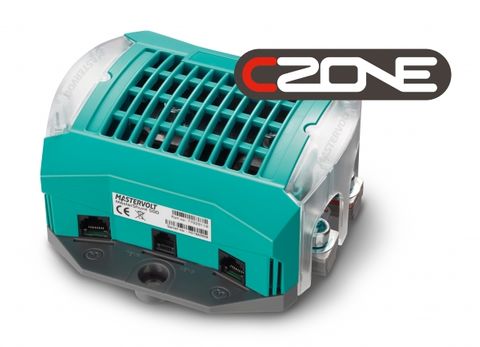

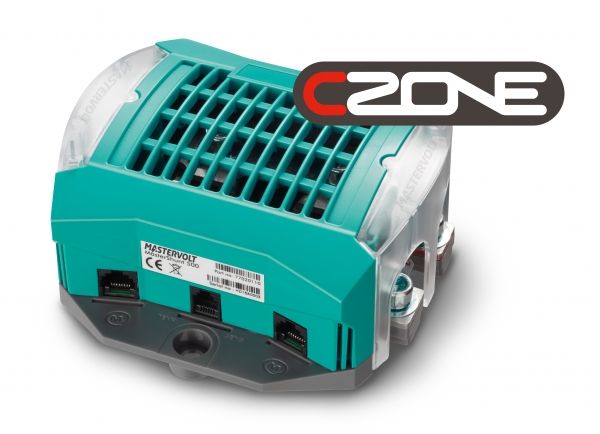

MasterVolt MasterShunt 500 CZone battery monitorMasterShunt is the heart of every battery powered energy system. This integrated battery monitor shares information about the battery bank with other MasterBus, CZone or NMEA 2000 enabled devices such as battery chargers, inverter/chargers and displays. No surprises
Downloads
Part No. Description Price Quantity 400320Battery monitor MASTERVOLT Mastershunt CZone N2k 77020115 110551$545.00 Inc GST
