Network Cables and Connectors

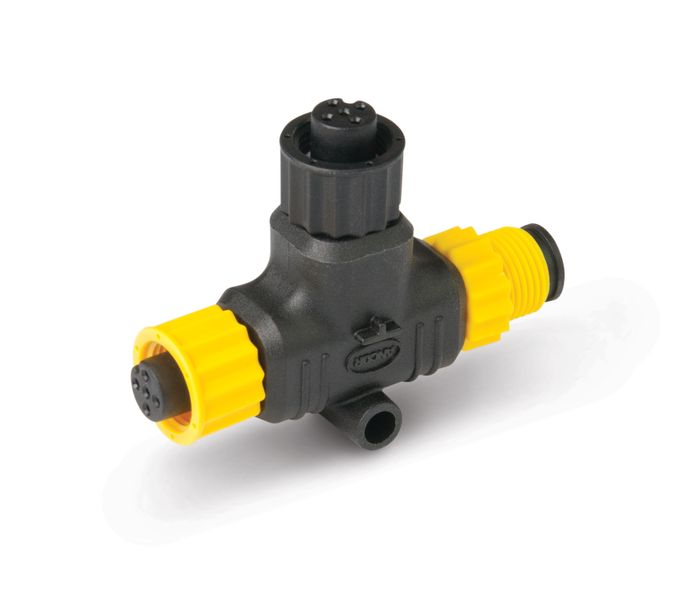

  • CZONE TEE Connectors
    Connects a single device or mutiple devices into the NMEA backbone.
    Part No. Description Price Quantity
    400600
    NMEA 2000 1 way T-piece 80-911-0029-00 112874
    		$47.00 Inc GST
    400602
    NMEA 2000 2 way T-piece 80-911-0047-00 112942
    		$81.00 Inc GST
    400604
    NMEA 2000 4 way T-piece 80-911-0048-00 112944
    		$122.00 Inc GST

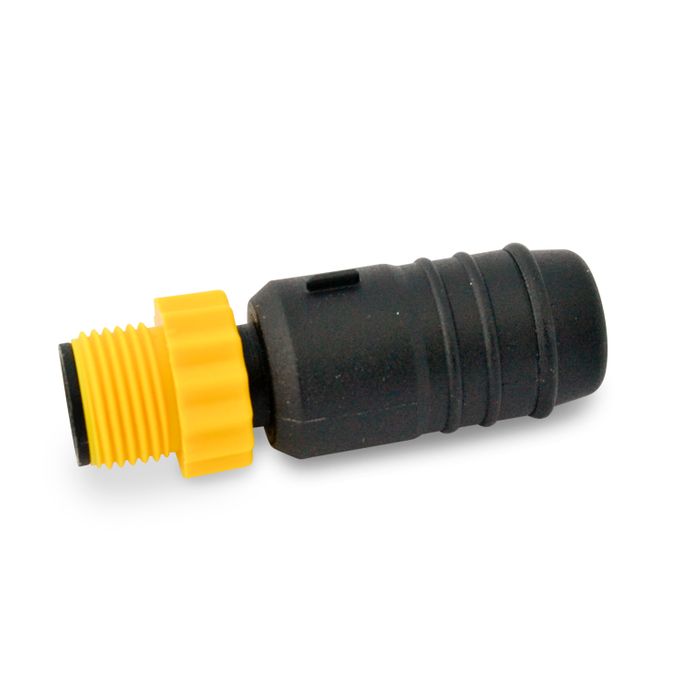

  • CZONE Terminating Resistors
    Use at either end of the NMEA backbone to complete the network. Each network must have a male and female terminator.
    Part No. Description Price Quantity
    400610
    NMEA 2000 male resistor 80-911-0031-00 112878
    		$17.00 Inc GST
    400612
    NMEA 2000 female resistor 80-911-0030-00 112876
    		$17.00 Inc GST

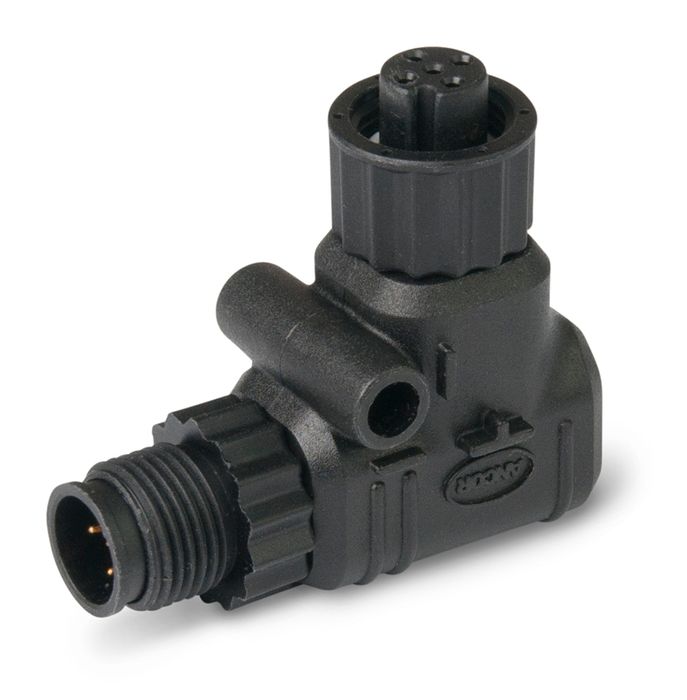

  • CZONE NMEA 2000 Network 90 degree Elbow Connector
    Space saving connector for modules displays and cabling connections.
    Part No. Description Price Quantity
    400614
    NMEA 90 elbow 80-911-0046-00 112940
    		$34.00 Inc GST

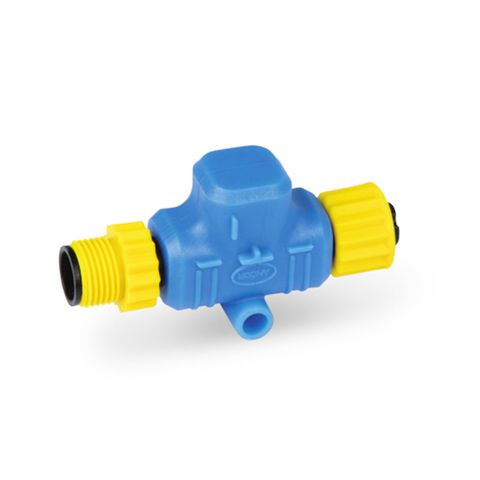

  • CZONE Power Isolator
    Used for the isolating power between two independent NMEA 2000 networks.
    Part No. Description Price Quantity
    400616
    NMEA power isolator 80-911-0137-00 -
    		$38.00 Inc GST

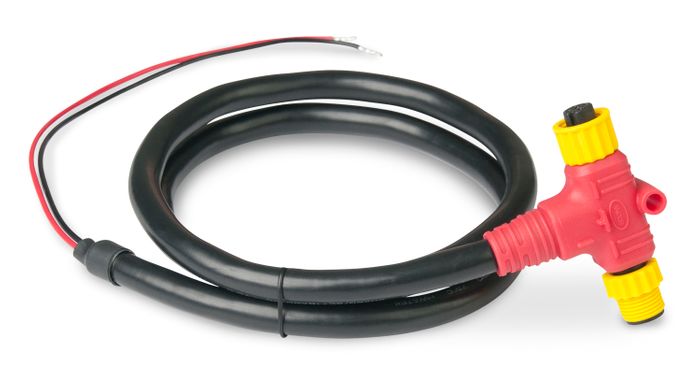

  • CZONE NMEA 2000 Power Cable
    Feeds power to the NMEA 2000 network. 0.8mm² conductors meet ABYC/CE standard for minimum conductor size. Cable length 1m.
    Part No. Description Price Quantity
    400618
    NMEA 2000 cable extension 1m 80-911-0028-00 112880
    		$51.00 Inc GST

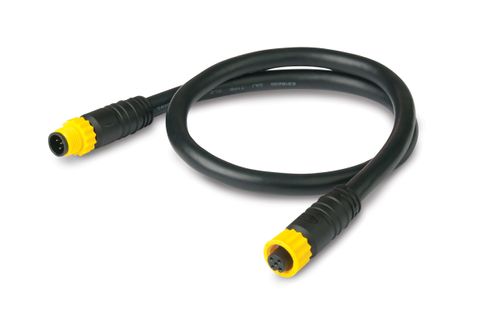

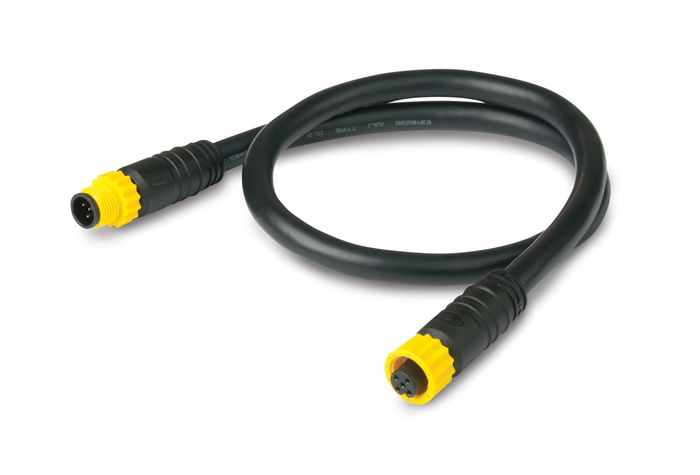

  • CZONE Backbone Cable
    Special low volt drop Backbone Cable ensures ultimate reliability for your NMEA 2000 network.
    Part No. Description Price Quantity
    400620
    NMEA 2000 backbone cable 0.5m 80-911-0026-00 112860
    		$35.00 Inc GST
    400624
    NMEA 2000 cable extension 2m 80-911-0027-00 112862
    		$45.00 Inc GST
    400625
    NMEA 2000 cable extension 3m 80-911-0211-00 -
    		$49.00 Inc GST
    400626
    NMEA 2000 cable extension 5m 80-911-0024-00 112866
    		$67.00 Inc GST
    400628
    NMEA 2000 cable extension 10m 80-911-0025-00 112870
    		$92.00 Inc GST

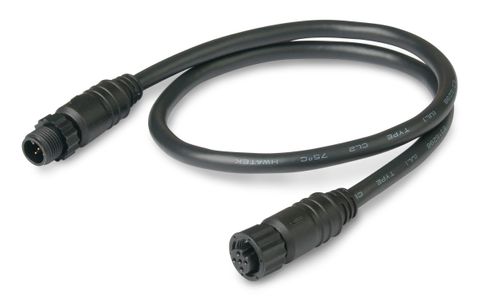

  • CZONE Drop Cable
    Thinner, more flexible Drop Cables connect individual devices to the NMEA network.
    Part No. Description Price Quantity
    400630
    ANCOR NMEA2000 drop cable 0,5m+ 80-911-0116-00 112859
    		$31.00 Inc GST
    400632
    ANCOR NMEA2000 drop cable 1,0m+ 80-911-0117-00 112861
    		$36.00 Inc GST
    400634
    ANCOR NMEA2000 drop cable 2,0m+ 80-911-0118-00 112863
    		$43.00 Inc GST
    400636
    NMEA 2000 drop cable 5m 80-911-0115-00 112865
    		$61.00 Inc GST

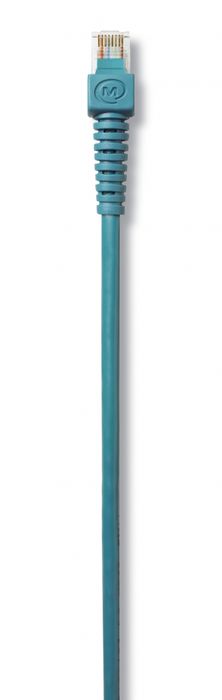

  • MasterVolt MasterBus cable
    Suitable for data traffic and powering peripheral equipment in harsh environments, this is the only cable you need for your MasterBus network. MasterBus compatible products come standard with two ports, while other equipment requires an interface.
    Part No. Description Price Quantity
    400660
    MasterVolt MasterBus cable 0.2m 77040020 110620
    		$15.00 Inc GST
    400661
    MasterVolt MasterBus cable 0.5m 77040050 110622
    		$17.00 Inc GST
    400662
    MasterVolt MasterBus cable 1m 77040100 110624
    		$22.00 Inc GST
    400663
    MasterVolt MasterBus cable 3m 77040300 110626
    		$24.00 Inc GST
    400664
    MasterVolt MasterBus cable 6m 77040600 110628
    		$26.00 Inc GST
    400665
    MasterVolt MasterBus cable 10m 77041000 110630
    		$30.00 Inc GST
    400666
    MasterVolt MasterBus cable 15m 77041500 110632
    		$52.00 Inc GST
    400667
    MasterVolt MasterBus cable 25m 77042500 -
    		$85.00 Inc GST
    400668
    MasterVolt MasterBus cable 100m 77045000 -
    		$199.00 Inc GST

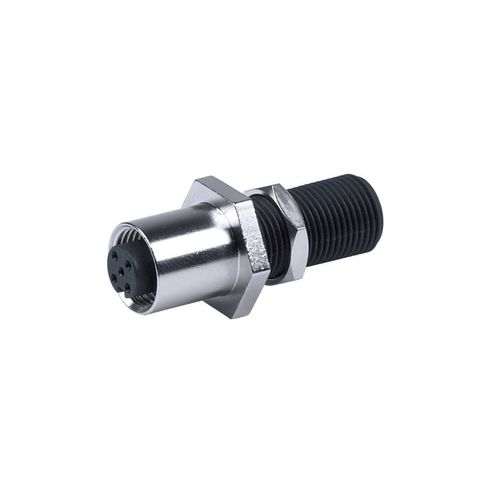

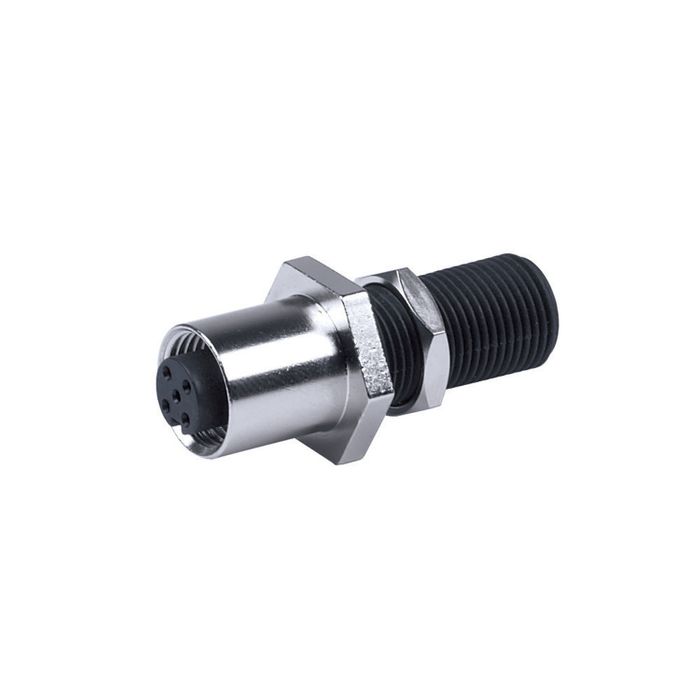

  • CZONE NMEA 2000 Network Through Bulkhead Adapter
    For use on the backbone to transition through a waterproof bulkhead or can be used to connect removable equipment such as a computer interface.
    Part No. Description Price Quantity
    400640
    CZone NMEA2000 bulkhead adaptor 80-911-0052-00 112956
    		$20.00 Inc GST

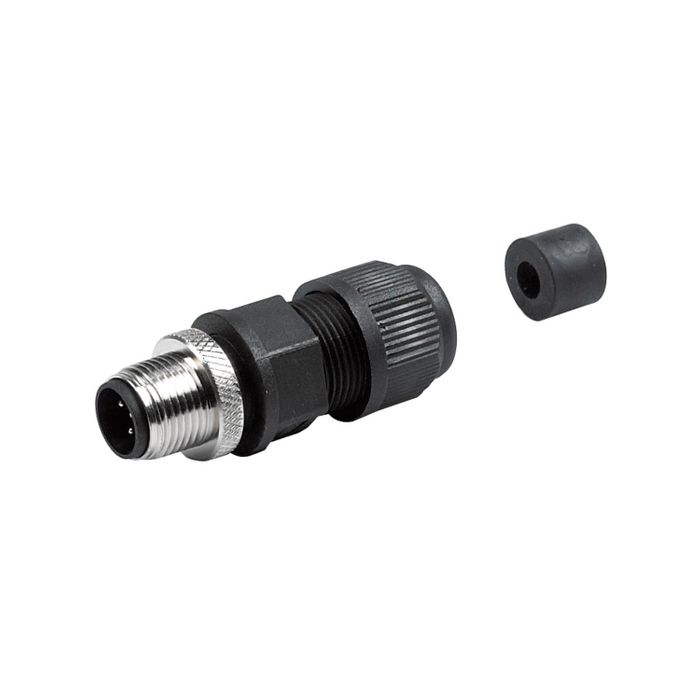

  • CZONE Field Serviceable Connectors
    For terminating bare NMEA cable.
    Part No. Description Price Quantity
    400642
    NMEA 2000 male connector 80-911-0054-00 112962
    		$37.00 Inc GST
    400644
    NMEA 2000 female connector 80-911-0053-00 112960
    		$37.00 Inc GST
  • Blanking Cap for CZONE NMEA 2000 Male Connectors
    Protects unused NMEA 2000 male connectors from dust and water, i.e. the cap itself has a female thread.
    Part No. Description Price Quantity
    400646
    Cap for NMEA 2000 male connector, ie the cap has a female thread 80-911-0050-00 112952
    		$4.00 Inc GST
  • Blanking Cap for CZONE NMEA 2000 Female Connectors
    Protects unused NMEA 2000 female connectors from dust and water, i.e. the cap itself has a male thread.
    Part No. Description Price Quantity
    400648
    Cap for NMEA 2000 female connector, ie the cap has a male thread 80-911-0051-00 112954
    		$4.00 Inc GST

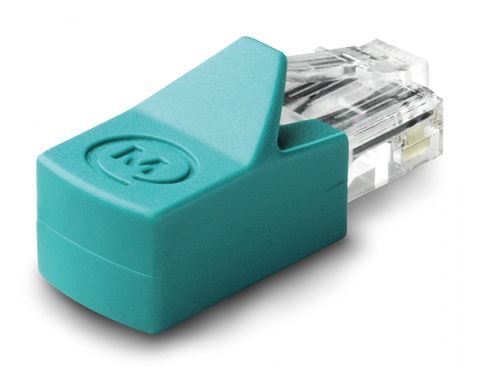

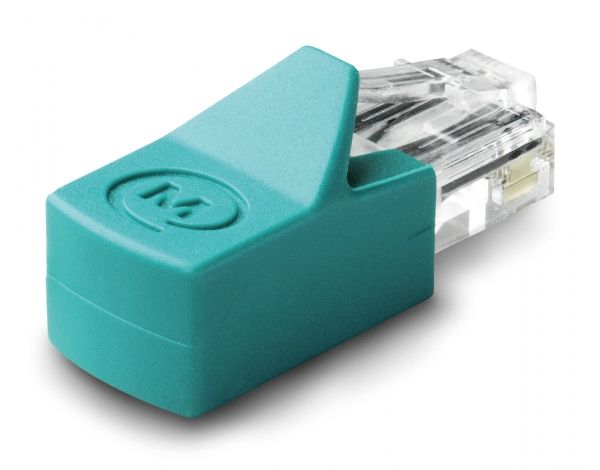

  • MasterVolt MasterBus Terminator
    Terminators ensure interference-free operation of the MasterBus network, prevent reflection of data signals and ensure high communication speeds.
    Part No. Description Price Quantity
    400650
    Terminator MasterBus MasterVolt 77040000 110646
    		$7.00 Inc GST

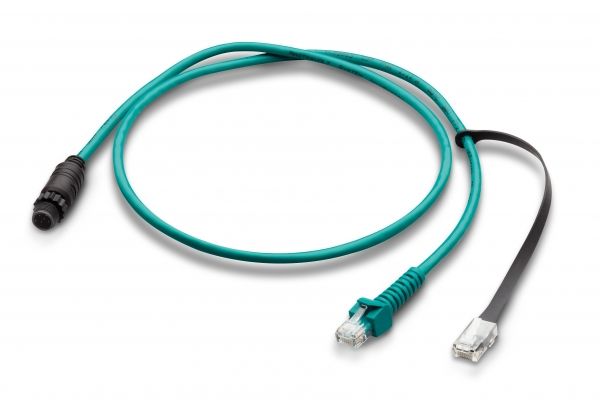

  • Mastervolt-CZone drop cable
    Adapter cable for connecting Mastervolt devices with CZone support to the CZone or NMEA 2000 network.
    Part No. Description Price Quantity
    400670
    Cable MasterBus NMEA2000 drop 0,5m Mastervolt 77060050 112975
    		$43.00 Inc GST
    400671
    Cable MasterBus NMEA2000 drop 1m Mastervolt 77060100 112976
    		$45.00 Inc GST
    400672
    Cable MasterBus NMEA2000 drop 2m Mastervolt 77060200 112977
    		$49.00 Inc GST
    400673
    Cable MasterBus NMEA2000 drop 5m Mastervolt 77060500 -
    		$65.00 Inc GST
