Bus Bars/Distribution Studs

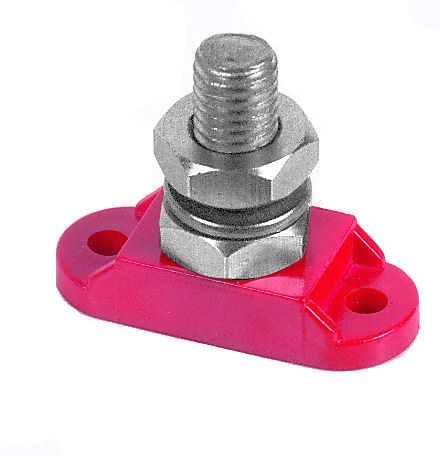

  • BEP Distribution single stud
    Made with high temperature plastic bases. Stud covers [sold separately] push securely over the threaded stud covering to ABYC standards.
    Part No. Description Price Quantity
    260100
    Distribution Stud 1x6mm no housing positive BEP IS-6MM-1R 113515
    		$6.00 Inc GST
    260101
    Distribution Stud 1x06mm no housing negative BEP IS-6MM-1 113517
    		$6.00 Inc GST

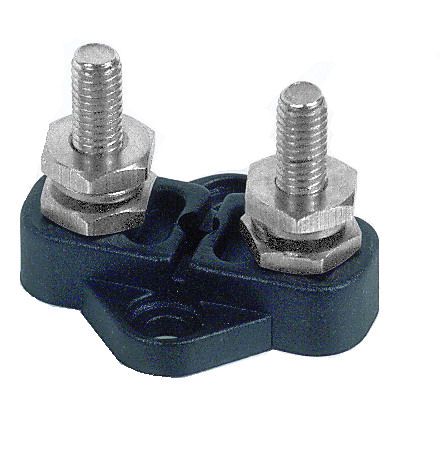

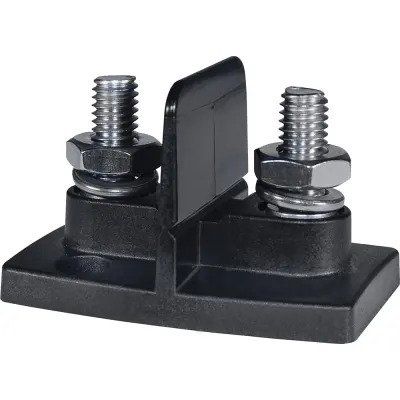

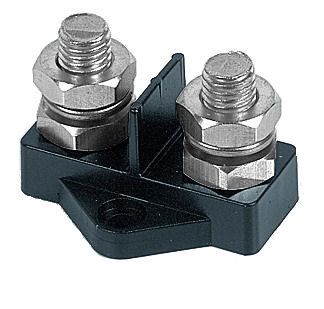

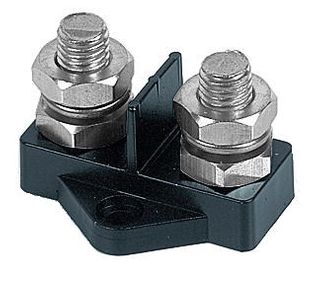

  • BEP Distribution Dual 6mm Studs
    Made with high temperature plastic bases. Stud covers [sold separately] push securely over the threaded studs, covering to ABYC standards. Ideal for positve and negative connections, branch circuits, etc.
    Part No. Description Price Quantity
    260105
    Distribution stud 2x6mm no housing black BEP IS-6MM-2 113520
    		$9.00 Inc GST

    Related Products

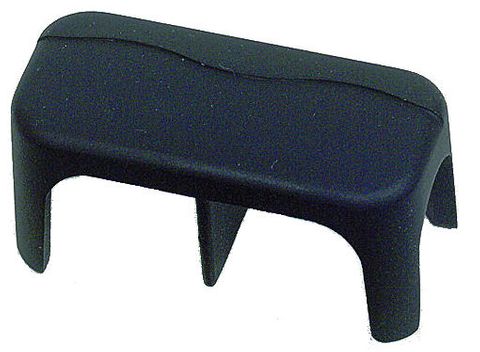

  • BEP distribuition stud cover 2 way for 260105&15&18
    Part No. Description Price Quantity
    260106
    Cover for distribution stud 2x06mm black BEP ISC-6-2 113529
    		$6.00 Inc GST
    260107
    Cover for distribution stud 2x06mm red BEP ISC-6-2R 113526
    		$6.00 Inc GST

    Related Products

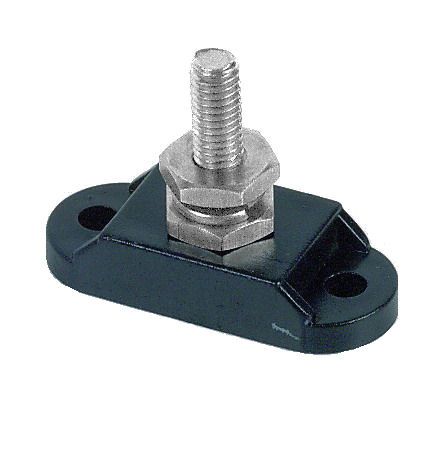

  • BEP Distribution insulated single studs
    Made with high temperature plastic bases. Stud covers [sold separately] push securely over the threaded stud covering to ABYC standards.
    Part No. Description Price Quantity
    260110
    Distribution Stud 1x10mm no housing positive BEP IS-10MM-1R 113518
    		$14.00 Inc GST
    260111
    Distribution Stud 1x10mm no housing negative BEP IS-10MM-1 113519
    		$14.00 Inc GST

    Related Products

  • Part No. Description Price Quantity
    260115
    Distribution Stud 2x10mm no housing IS-10MM-2 113522
    		$21.00 Inc GST

    Related Products

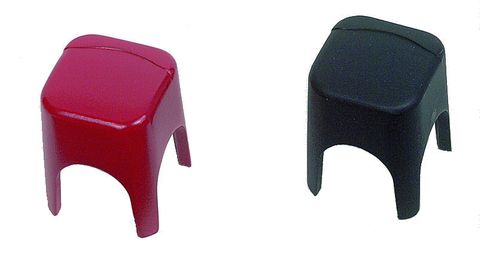

  • Covers for BEP 10mm Distribuition Studs
    Positive and negative insulating covers for BEP single 10mm distribution studs. Use two covers for dual 10mm studs.
    Part No. Description Price Quantity
    260116
    Cover for distribution stud 1x10mm pos ISC-10R 113523
    		$6.00 Inc GST
    260117
    Cover for distribution stud 1x10mm neg ISC-10BK 113525
    		$6.00 Inc GST

    Related Products

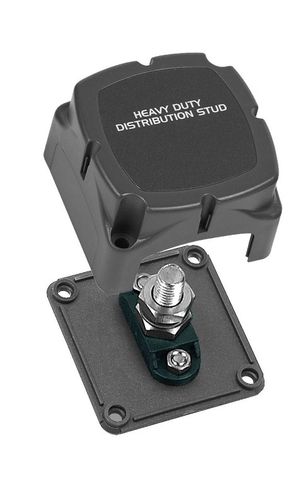

  • BEP Single, Dual and 4-way Distribution Studs in Contour Enclosures
    The Contour Distribution Studs allow termination of heavy duty cables for one or more connections. Removable side plates allow for connections from all sides. Designed to match all other Contour power distribution products with modular sizing and lock mouldings to facilitate easy grouping. Meet ABYC standards for exposed terminals. A secondary buss may be fitted to the distribution stud to provide connections for smaller wires without cluttering the main stud. Base dimensions 69mm x 69mm or 138mm x 69mm, height 50mm.
    Part No. Description Price Quantity
    260120
    Distribution stud 1xM10 in housing 702 113558
    		$48.00 Inc GST
    260125
    Distribution studs 2xM10 in housing 702-2S 113559
    		$69.00 Inc GST
    260126
    Distribution studs 4xM10 in BEP Contour housing 704-4S/B -
    		$119.00 Inc GST

    Related Products

  • BLIUE SEA SYSTEMS Single Distribution Stud
    Connects high amperage cables securely. Stud dimensions
    Part No. Description Price Quantity
    260130
    Distribution Stud PowerPost Blue Sea 1x5mm 2011-BSS BS-2010
    		$19.00 Inc GST
    260134
    Distribution Stud PowerPost Blue Sea 1x10mm 2003-BSS BS-2003
    		$28.00 Inc GST

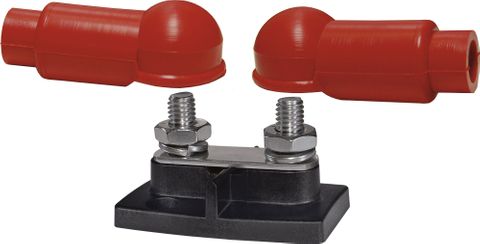

  • Provides a termination point for extending the length of outboard harnesses or other conductors
    Designed for connecting high amperage conductors. One-piece serrated flange nuts ensure correct and secure connections.
    Part No. Description Price Quantity
    260138
    Distribution Stud Dual Powerpost 2x10mm with insulators Blue Sea Systems 2017-BSS BS-2017
    		$45.00 Inc GST
  • Enables connection of multiple smaller wires in spaces where a traditional bus bar may not fit
    150 Ampere bus allows small wire connections at high amperage cable connections. Connects high amperage cables securely. Stud dimensions
    Part No. Description Price Quantity
    260140
    Distribution Stud PowerPost Plus Blue Sea 1x10mm with 6xM4 bus 2103-BSS BS-2103
    		$52.00 Inc GST

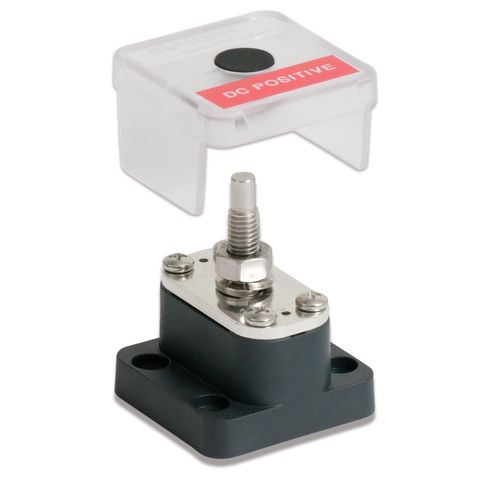

  • BEP Pro Installer Insulated Studs
    Pro installer family features are replicated with these insulated studs, generous stud length, modular foootprint, insulating covers with label recess, and common interconnection height.

    Downloads

    Part No. Description Price Quantity
    260150
    Distribution stud BEP PI 1xM8 IST-8MM-1S 114620P
    		$25.00 Inc GST
    260154
    Distribution stud BEP PI 1xM10 IST-10MM-1S 114628P
    		$25.00 Inc GST
  • BEP Pro Installer Insulated Studs With Power Tapping Plates
    The Power Tapping Plate single stud models provide convenient termination points for additional small cables.

    Downloads

    Part No. Description Price Quantity
    260160
    Distribution stud BEP PI 1xM8 + 4xM4 IST-8MM-1SPT 114622P
    		$41.00 Inc GST
    260164
    Distribution stud BEP PI 1xM10 + 4xM4 IST-10MM-1SPT - was 114630P
    		$53.00 Inc GST

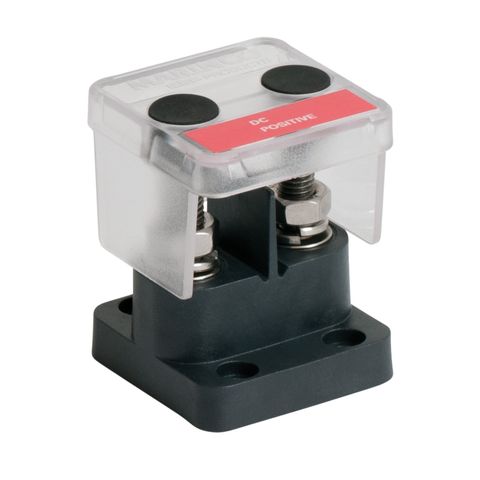

  • BEP Pro Installer Double Insulated Studs
    A double stud version with 10mm and 8mm studs features snap out insulating partition to allow linking of studs.

    Downloads

    Part No. Description Price Quantity
    260170
    Distribution stud BEP PI 2xM8 IST-8MM-2S 114624P
    		$39.00 Inc GST
    260172
    Distribution stud BEP PI 2xM8 IST-10MM-8MM 114626P
    		$40.00 Inc GST
    260174
    Distribution stud BEP PI 2xM10 IST-10MM-2S 114632P
    		$41.00 Inc GST

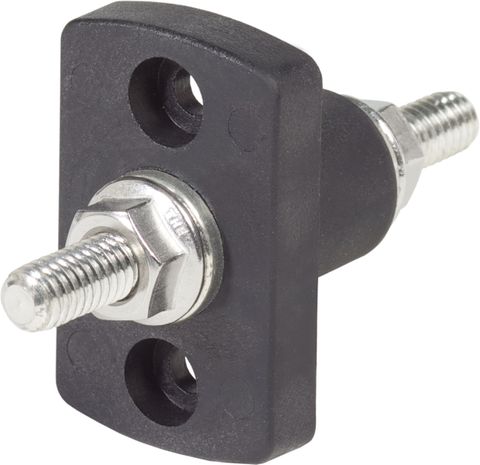

  • BLUE SEA SYSTEMS Terminal Feed Through Connectors
    Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide strain relief when passing high current cable through hulls, decks and bulkheads. Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation Rated IP66, withstand water from heavy seas. Available in 8mm and 10mm studs..
    Part No. Description Price Quantity
    260180
    Stud feed through Blue Sea Systems 8mm positive 2202-BSS BS-2202
    		$47.00 Inc GST
    260181
    Stud feed through Blue Sea Systems 8mm negative 2201-BSS BS-2201
    		$47.00 Inc GST
    260182
    Stud feed through Blue Sea Systems 10mm positive 2204-BSS BS-2204
    		$52.00 Inc GST
    260183
    Stud feed through Blue Sea Systems 10mm negative 2203-BSS BS-2203
    		$52.00 Inc GST
  • BEP Secondary Bus
    Fitted to Distribuition stud 260120. Allows for small wire connections without cluttering main stud. Terminal screws 4mm.
    Part No. Description Price Quantity
    260200
    Buss secondary for distribution stud M10 702SB 113562
    		$38.00 Inc GST

    Related Products

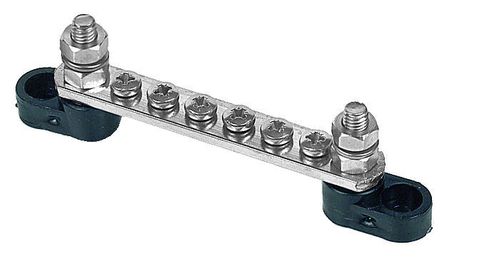

  • BEP BusBars 6 way
    Tin-plated, brass-insulated mounting bases with recessed mounting holes to avoid accidental shorts on aluminium surfaces.
    Part No. Description Price Quantity
    260210
    Buss bar BEP 6 cct BB-6W-2S 113504
    		$20.00 Inc GST
    260211
    Bus bar BEP 2@(06x4mm screws, 2x6mm stud BB-6W-2NC 113505
    		$40.00 Inc GST

    Related Products

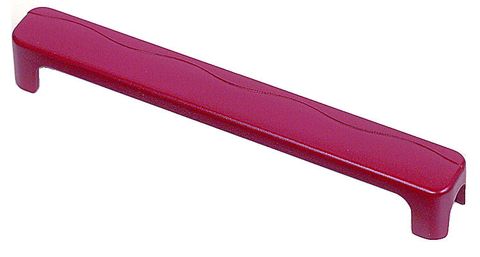

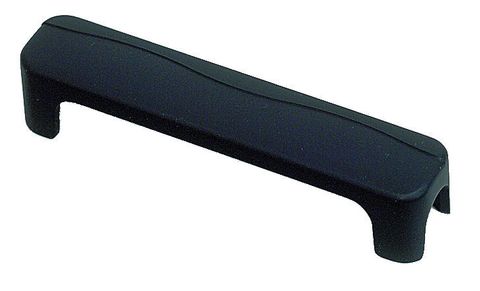

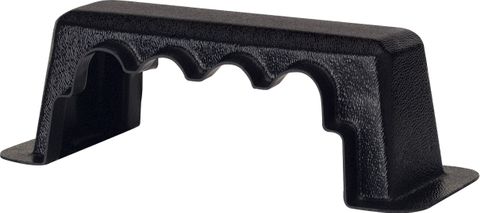

  • BEP BusBars 6 way Cover for 260210 & 260211
    Part No. Description Price Quantity
    260212
    Cover for bus bar 06 way pos BBC-6WR 113442
    		$7.00 Inc GST
    260213
    Cover for bus bar 06 way neg BBC-6WBK 113443
    		$7.00 Inc GST

    Related Products

  • BEP Bus Bars 2 x 6 way
    Tin-plated, brass-insulated mounting bases with recessed mounting holes to avoid accidental shorts on aluminium surfaces.
    Part No. Description Price Quantity
    260215
    Bus Bar 2x6 way in housing BB-6W-2 113508
    		$124.00 Inc GST
  • BEP BusBars 12 way
    Tin-plated, brass-insulated mounting bases with recessed mounting holes to avoid accidental shorts on aluminium surfaces.Avai;labe as single 12 way or dual 12 way bars.
    Part No. Description Price Quantity
    260220
    Buss bar 12way BB-12W-2S 113506
    		$23.00 Inc GST
    260221
    Bus bar BEP 2@(12x4mm screws, 2x6mm stud BB-12W-2NC 113507
    		$43.00 Inc GST

    Related Products

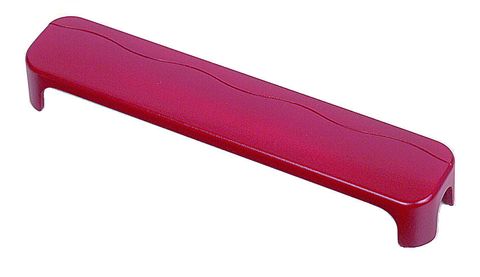

  • BEP BusBars 12 way Cover for 260220 & 260221
    Part No. Description Price Quantity
    260222
    Cover for bus bar 12 way pos BBC-12WR 113444
    		$9.00 Inc GST
    260223
    Cover for bus bar 12 way neg BBC-12WBK 113445
    		$8.00 Inc GST

    Related Products

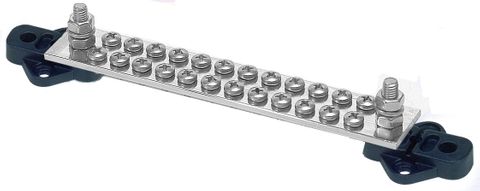

  • BEP BusBars 24 way
    Tin-plated, brass-insulated mounting bases with recessed mounting holes to avoid accidental shorts on aluminium surfaces.
    Part No. Description Price Quantity
    260230
    Buss Bar 24 Way BB-24W-2S 113509
    		$37.00 Inc GST

    Related Products

  • BEP BusBars 24 way Cover for 260230
    Part No. Description Price Quantity
    260232
    Cover for bus bar 24 pole pos BBC-24WR 113446
    		$10.00 Inc GST
    260233
    Cover for bus bar 24 pole neg BBC-24WBK 113447
    		$11.00 Inc GST

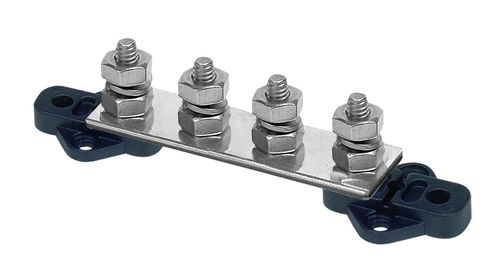

  • BEP BusBars 4 Stud
    Tin-plated, brass-insulated mounting bases with recessed mounting holes to avoid accidental shorts on aluminium surfaces.
    Part No. Description Price Quantity
    260240
    Bus Bar 4xM6 150A BB-4S-150A 113503
    		$53.00 Inc GST
  • BEP Distribution Bus 2 Linked Studs
    Two linked 10mm studs, rated 300A accross the link.
    Part No. Description Price Quantity
    260241
    Distribution bus 2x10mm linked studs, rated 300A accross link IS-10MM-2/L -
    		$38.00 Inc GST

    Related Products

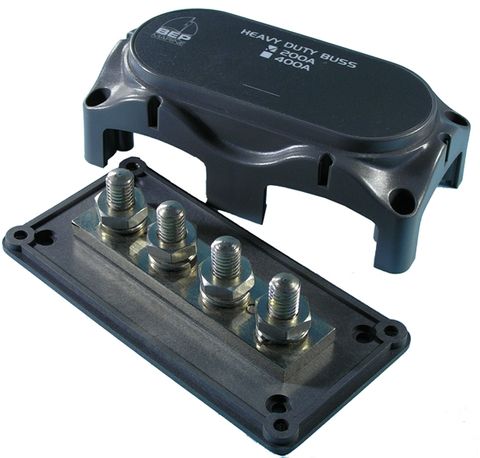

  • BEP Contour Distribution Bus 4 way 300A
    Distribution Bus allows multiple terminations for heavy duty negative or positive connections. Modular sizing with contour lock mouldings allows easy grouping and meets ABYC standards for exposed terminals.
    Part No. Description Price Quantity
    260242
    Buss Distribution 300A 4x10mm in housing 703-300A 113566
    		$131.00 Inc GST

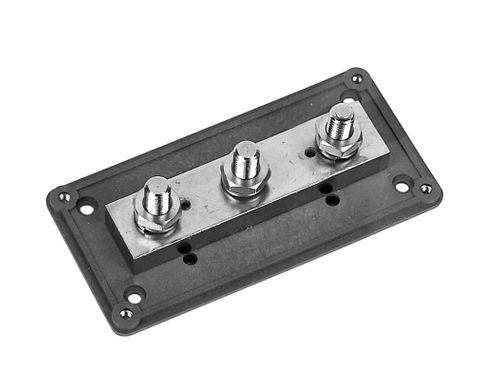

  • Bep BusBars 3 way 500A
    Tin-plated, brass-insulated mounting bases with recessed mounting holes to avoid accidental shorts on aluminium surfaces.
    Part No. Description Price Quantity
    260244
    Buss Distribution 500A 3x10mm in housing 703-500A 113567
    		$155.00 Inc GST

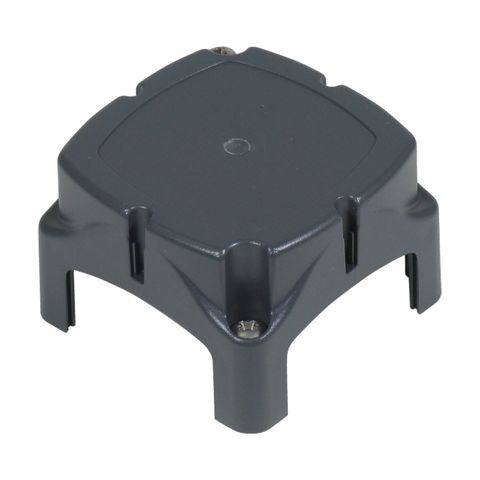

  • BEP Contour Housing Covers
    These are the covers used on all the BEP Contour range of components. The moulded grey plastic covers match all other BEP Contour power distribution products with modular sizing and lock mouldings which facilitates easy grouping. Ideal to use as stud covers or busbar covers for BEP 6 way or 2 x 6 way busbars. Designed to meet ABYC standards for exposed terminals. 69mm & 138mm long x 69mm wide x 50mm high.
    Part No. Description Price Quantity
    260247
    Cover Contour single housing no base BEP BBC-1 113524
    		$16.00 Inc GST
    260248
    Cover Contour dual housing no base BEP BBC-2 113516
    		$19.00 Inc GST

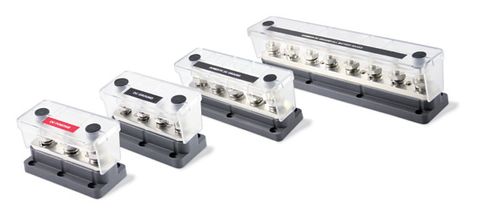

  • BEP Pro Installer Heavy Duty Bus Bars
    Provides a robust means to connect together the multitude of large cables found in modern electrical installations. They offer unrivaled flexibility to meet the requirements of any installation, saving significant cost and space.

    Downloads

    Part No. Description Price Quantity
    260250
    Buss bar HD BEP PI 4xM8 500A 777-BB4S-500 114602P
    		$135.00 Inc GST
    260252
    Buss bar HD BEP PI 3xM10 650A 777-BB3S-650 114600P
    		$143.00 Inc GST
    260254
    Buss bar HD BEP PI 5xM10 650A 777-BB5S-650 114604P
    		$192.00 Inc GST
    260256
    Buss bar HD BEP PI 8xM10 650A 777-BB8S-650 114606P
    		$254.00 Inc GST
  • BEP Pro Installer Z BUS Bars
    BEP products have created a completely new concept for small cable termination with the Z-bar range. These Bus Bars maximize power density by utilizing high and low level bars to optimize cable runs, saving even more installation space.

    Downloads

    Part No. Description Price Quantity
    260260
    Buss bar Z BEP PI 4xM6 10xM4 2x200A 777-Z10W-200 114614P
    		$52.00 Inc GST
    260262
    Buss bar Z BEP PI 4xM6 18xM4 2x200A 777-Z18W-200 114616P
    		$81.00 Inc GST

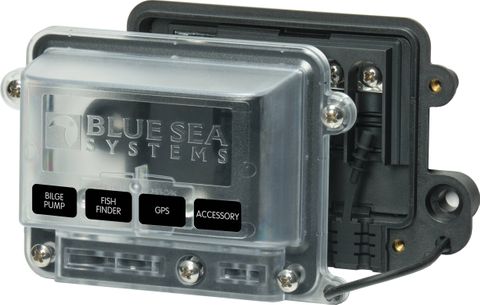

  • BLUE SEAS Water-Resistant - 100A BusBar
    Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools. Accepts a wide range of wire sizes. Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used. Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring. Ideal for positive distribution and for the collection of negative or AC ground circuits. meets ABYC/USCG insulation requirements. Tin-plated copper busses and fuse clips. Includes four write-on circuit labels. Small format standard and custom labels available.

    Downloads

    Part No. Description Price Quantity
    260300
    BusBar battery terminal mount 100A 4x4mm screws pos& neg w covers Blue Sea Systems 2340-BSS BS-2340
    		$50.00 Inc GST
    260301
    BusBar battery terminal mount 100A 4x4mm screws positive w cover Blue Sea Systems 2341B-BSS -
    		$20.00 Inc GST
    260302
    BusBar battery terminal mount 100A 4x4mm screws negative w cover Blue Sea Systems 2342B-BSS BS-2342B
    		$20.00 Inc GST

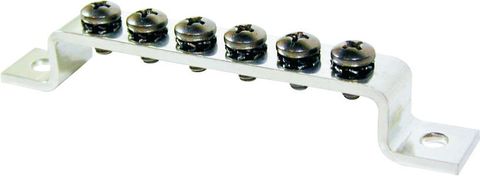

  • BLUE SEA 100A Compact Bus Bar
    100A tinned copper bus bar suited for common negative distribution. Compact dimensions, 95mm x 13mm x 15mm high. Six d4mm screws.
    Part No. Description Price Quantity
    260303
    BusBar 100A 6x4mm screws Blue Sea Systems 2306-BSS -
    		$14.00 Inc GST
  • Part No. Description Price Quantity
    260304
    BusBar BS Water Resistant 100A with cover (4x4mm Screw, 1x5mm Stud) 2356-BSS -
    		$69.00 Inc GST

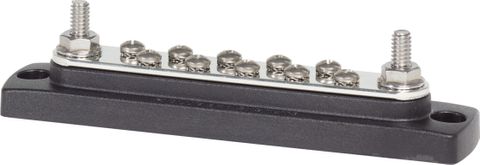

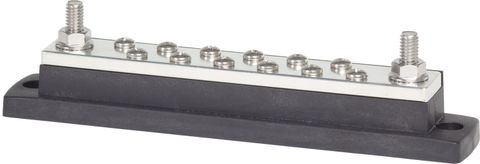

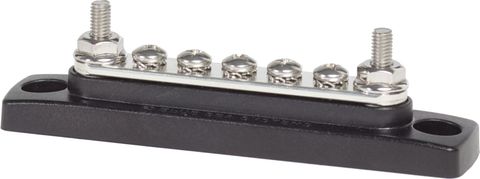

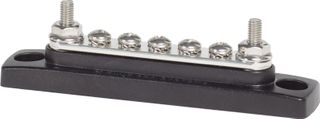

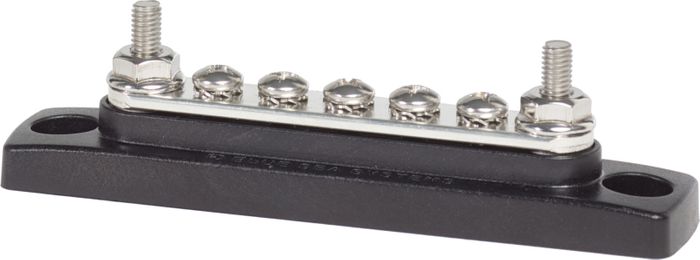

  • BLUE SEAS MiniBus – 100A Common BusBars
    Great for limited space applications, these bus bars measure 107mm x 23mm x mm high. Available with four 5mm studs or two 5mm studs plus five 4mm screws, both with or without a clear plastic cover.

    Downloads

    Part No. Description Price Quantity
    260305
    BusBar BS 100A (5x4mm Screw, 2x5mm Stud) 2304B-BSS BS-2304
    		$28.00 Inc GST
    260306
    BusBar BS 100A (5x4mm Screw, 2x5mm Stud) with cover 2314-BSS BS-2314
    		$33.00 Inc GST
    260307
    BusBar BS 100A (4x5mm Stud) 2305-BSS 'BS-2305
    		$31.00 Inc GST
    260308
    BusBar BS 100A (4x5mm Stud) with cover 2315-BSS BS-2315
    		$37.00 Inc GST

    Related Products

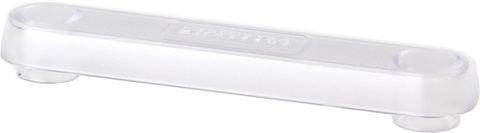

  • BLUE SEAS MiniBus 100A BusBar Cover for PN 260305 and 260307
    Clear plastic cover for 100A Bus bars. This is the same cover that is supplied as part of 260306 and 260308.
    Part No. Description Price Quantity
    260310
    Cover for Blue Seas BusBar 100A PN260305/7 2713-BSS BS-2713
    		$8.00 Inc GST

    Related Products

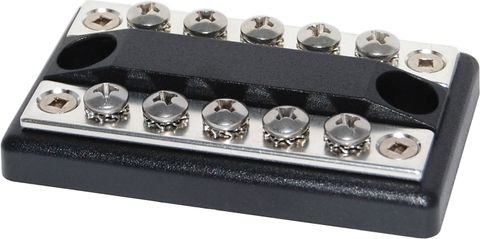

  • BLUE SEAS DualBus – 100A Common BusBars
    Combines negative and positive buses on one block

    Downloads

    Part No. Description Price Quantity
    260315
    Bus Bar BS DualBus100A (5 per bus x4mm, 5mm mounting screw) 2701-BSS BS-2701
    		$36.00 Inc GST
    260316
    Bus Bar BS DualBus100A (10 per bus x4mm, 5mm mounting screw) 2702-BSS BS-2702
    		$47.00 Inc GST
  • Part No. Description Price Quantity
    260317
    Cover for BusBar Dual BlueSeas 100A for PN 260315 2709-BSS -
    		$28.00 Inc GST
    260318
    Cover for BusBar Dual BlueSeas 100A for PN 260316 2710-BSS -
    		$32.00 Inc GST

    Related Products

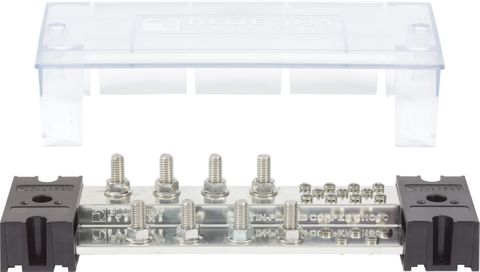

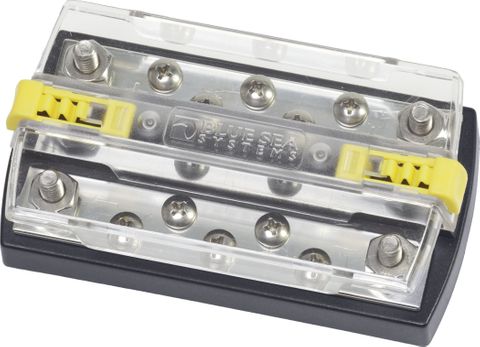

  • BLUE SEAS DualBus Plus – 150A Common BusBars
    Secure, clear polycarbonate cover snaps on easily to meet ABYC insulation requirements. Combines negative and positive buses on one block. Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements.

    Downloads

    Part No. Description Price Quantity
    260320
    BusBar DualPlus BS 150A (5 per bus x5mm Screw, 2 per bus x6mm Stud) 2722-BSS BS-2722
    		$60.00 Inc GST
    260321
    BusBar DualPlus BS 150A (5 per bus x5mm Screw, 2 per bus x8mm Stud) 2723-BSS BS-2723
    		$68.00 Inc GST

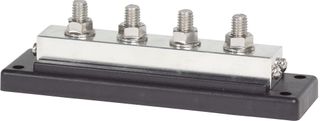

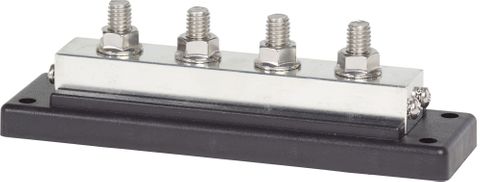

  • BLUE SEAS 150A Common BusBars
    Insert-molded stainless steel studs eliminate the need for securing nuts and allow high torqueing for excellent electrical contact. The industry standard busbar for positive distribution and the collection of negative or AC ground circuits.

    Downloads

    Part No. Description Price Quantity
    260325
    BusBar BS 150A (10x4mm Screw, 2x6mm Stud) 2301-BSS BS-2301
    		$37.00 Inc GST
    260326
    BusBar BS 150A (10x4mm Screw, 2x6mm Stud) with cover 2300B-BSS BS-2300
    		$29.00 Inc GST
    260327
    BusBar BS 150A (20x4mm Screw, 2x6mm Stud) 2302-BSS BS-2302
    		$57.00 Inc GST
    260328
    BusBar BS 150A (20x4mm Screw, 2x6mm Stud) with cover 2312-BSS BS-2312B
    		$68.00 Inc GST
    260329
    BusBar BS 150A 4x6mmST 2303-BSS BS-2303
    		$47.00 Inc GST
    260330
    BusBar BS 150A 4x6mm studs with cover 2307B-BSS BS-2307B
    		$35.00 Inc GST

    Related Products

  • BLUE SEAS Common 150A BusBar Cover for PN 260325, 260327 and 260329
    Part No. Description Price Quantity
    260331
    Cover for BusBar Common BlueSeas 150A for PN 260325 and 260329 2715-BSS BS-2715
    		$9.00 Inc GST
    260332
    Cover for BusBar Common BlueSeas 150A for PN 260327 2716-BSS -
    		$14.00 Inc GST

    Related Products

  • BLUE SEAS MaxiBus – 250A Common BusBars
    Now with insert-molded stainless steel studs and optional fully enclosed insulating base and cover. Raised bus provides easy access to multiple wires on a single screw or stud. UL 94-V0 rated base material resists high heat. Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces.

    Downloads

    Part No. Description Price Quantity
    260334
    BusBar BS MaxiBus 250A (6x5mm Screw, 2x8mm Stud) (length 149mm, mounting centers in 133mm) 2128-BSS -
    		$80.00 Inc GST
    260335
    BusBar BS MaxiBus 250A (4x8mm Stud) (length 149mm, mounting centers in 133mm) 2127B-BSS BS-2127
    		$63.00 Inc GST
    260336
    BusBar BS MaxiBus 250A (12x5mm Screw, 2x8mm Stud) (length 197mm, mounting centers in 181mm) 2105-BSS BS-2105
    		$118.00 Inc GST
    260337
    BusBar BS MaxiBus 250A (6x8mm Stud) (length 197mm, mounting centers in 181mm) 2126B-BSS BS-2126B
    		$128.00 Inc GST
  • BLUE SEAS MaxiBus 250A Insulating Cover for PN 260335, 260336 and PN 260337,260338
    Part No. Description Price Quantity
    260338
    Cover for BusBar MaxiBus 250A for PN 260334 and 260335 Blue Sea Systems 2719B-BSS BS-2719
    		$44.00 Inc GST
    260339
    Cover for BusBar MaxiBus 250A for PN 260336 and 260337 Blue Sea Systems 2718-BSS -
    		$71.00 Inc GST

    Related Products

  • BLUE SEAS PowerBar-200A Common BusBars
    Provides compact high-amp busing with 10mm terminal studs.

    Downloads

    Part No. Description Price Quantity
    260345
    BusBar BS PowerBar with insulator 200A (2x10mm Stud) 2019-BSS BS-2019
    		$49.00 Inc GST
    260346
    BusBar BS PowerBar 200A (2x10mm Stud) 2020-BSS -
    		$36.00 Inc GST
  • BLUE SEAS PowerBar-600A Common BusBars
    High amperage BusBar with 10mm terminal studs.

    Downloads

    Part No. Description Price Quantity
    260350
    BusBar BS PowerBar 600A (4x4mm Screw, 4x10mm Stud) (Length 177.8mm, Mounting centers in 158.74mm) 2104B-BSS BS-2104
    		$226.00 Inc GST
    260351
    BusBar BS PowerBar 600A (4x4mm Screw, 8x10mm Stud) (Length 288.93mm, Mounting centers in 263.53mm) 2107-BSS -
    		$287.00 Inc GST

    Related Products

  • BLUE SEAS Common 650A BusBar Cover for PN 260350
    Part No. Description Price Quantity
    260352
    Cover for BusBar Common BlueSeas 650A for PN 260350 2708-BSS -
    		$49.00 Inc GST

    Related Products

  • BLUE SEAS PowerBAR – 1000A Common BusBar
    Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
    Part No. Description Price Quantity
    260355
    BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 8x10mm Stud) 1990-BSS -
    		$357.00 Inc GST
    260356
    BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 12x10mm Stud) 1991-BSS -
    		$446.00 Inc GST
    260357
    BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 8x8mm Stud) 1992-BSS -
    		$357.00 Inc GST
    260358
    BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 12x8mm Stud) 1993-BSS -
    		$446.00 Inc GST

    Related Products

  • BLUE SEAS PowerBar 1000A BusBar Cover for PN 260355,260357 and PN 260356,260358
    Part No. Description Price Quantity
    260359
    Cover for BusBar PowerBar BlueSeas 1000A for PN 260355 and 260357 2730B-BSS -
    		$49.00 Inc GST
    260360
    Cover for BusBar PowerBar BlueSeas 1000A for PN 260356 and 260358 2731B-BSS -
    		$47.00 Inc GST

    Related Products

  • Part No. Description Price Quantity
    260287
    Bus Bar Lynx Distributor M10 four MEGA fused positive outputs & four negative outputs VICTRON LYN060102010
    		$376.00 Inc GST
    260285
    Bus Bar Lynx Power In UNFUSED 4 outputs positive & negative M10 VICTRON LYN020102010
    		$273.00 Inc GST
