Fuses and Fuseholders

  • Bussmann Marine Rated Battery Terminal Fuses
    The Bussmann Marine Rated Battery Terminal Fuses MRBF are colour coded DC fuses ranging from 30A to 300A that can be mounted to battery terminals, bus bars or battery switches using special holders or bus bars. Ignition protected and suitable for use in enclosures with petrol engines, these fuses have a high enough interrupt rating to permit them to be used as primary circuit protection on large battery banks. The fuses have a visible window to see blown condition. The compact design is a feature, but care must be taken to understand their function to avoid inappropriate and potentially dangerous installation. The design of these fuses places the fuse between the top and bottom contact areas. It is crucial that the central 8mm mounting stud or bolt does not provide a path for current to bypass the fuse, thus rendering it ineffective. An insulator is required to isolate the stud from either the unfused or the fused section of the fuse. All the mountings for these fuses advertised on this website do this.
    Part No. Description Price Quantity
    220112
    Fuse Battery Marine rated 58Vmax 030A 5175B-BSS BS-5175
    		$22.00 Inc GST
    220115
    Fuse Battery Marine rated 58Vmax 050A 5177B-BSS BS-5177
    		$22.00 Inc GST
    220116
    Fuse Battery Marine rated 58Vmax 060A 5178B-BSS BS-5178
    		$35.00 Inc GST
    220118
    Fuse Battery Marine rated 58Vmax 080A 5181B-BSS BS-5181
    		$22.00 Inc GST
    220120
    Fuse Battery Marine rated 58Vmax 100A 5183B-BSS BS-5183
    		$22.00 Inc GST
    220121
    Fuse Battery Marine rated 58Vmax 125A 5184B-BSS BS-5184
    		$22.00 Inc GST
    220122
    Fuse Battery Marine rated 58Vmax 150A 5185B-BSS BS-5185
    		$22.00 Inc GST
    220123
    Fuse Battery Marine rated 58Vmax 175A 5186B-BSS BS-5186
    		$22.00 Inc GST
    220124
    Fuse Battery Marine rated 58Vmax 200A 5187B-BSS BS-5187
    		$22.00 Inc GST
    220126
    Fuse Battery Marine rated 58Vmax 250A 5189B-BSS BS-5189
    		$22.00 Inc GST
    220128
    Fuse Battery Marine rated 58Vmax 300A 5190B-BSS BS-5190
    		$22.00 Inc GST
  • BLUE SEA SYSTEMS MRBF Fuse Holders
    These holders can be mounted directly onto 8mm battery studs to hold marine rated battery fuses
    Part No. Description Price Quantity
    220150
    Fuseholder battery MRBF Single 5191B-BSS BS-5191
    		$39.00 Inc GST
    220152
    Fuseholder battery MRBF Dual 2151B-BSS BS-2151B
    		$59.00 Inc GST

    Related Products

  • BLUE SEAS MRBF Fuse Blocks
    Accommodates three MRBF fuses for consolidated high amperage circuit protection Ideal for 3 output battery chargers Clip-on insulating cover satisfies ABYC/USCG insulation requirements Versatile wiring options allow all wires to come out a single side Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification One-piece stainless flange nuts ensure safe and secure connections Fuses sold separately.
    Part No. Description Price Quantity
    220155
    Fuseholder MRBF three circuits, independent sources. 5194B-BSS -
    		$104.00 Inc GST
    220157
    Fuseholder MRBF three circuits, common source 5196-BSS -
    		$113.00 Inc GST

    Related Products

  • Part No. Description Price Quantity
    220456
    Fuseholder blade WaterProof with mount BLUE SEA 5065B-BSS BS-5065B
    		$14.00 Inc GST
  • Blue Seas Blade Fuseholder Independent 6 pole
    Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system Accepts ring or snap fork type terminals Includes two terminal block jumpers.

    Downloads

    Part No. Description Price Quantity
    220468
    Fuseholder BSS blade independent 6 pole 5037-BSS -
    		$78.00 Inc GST
    220469
    Fuseholder BSS blade independent 6 pole with cover 5035-BSS BS-5035
    		$84.00 Inc GST
  • BLUE SEA Blade Common Source Fuseholder
    Consolidates branch circuits and in-line fuses. Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification. Fuse blocks with covers include 20 write-on circuit labels. Tin-plated copper buses and fuse clips. Accepts ring or snap fork type terminals. Accepts ATO® and ATC® fast acting blade fuses. Fuses sold separately.

    Downloads

    Part No. Description Price Quantity
    220473
    Fuseholder BSS blade 6 pole with cover 5028-BSS BS-5028
    		$84.00 Inc GST
    220474
    Fuseholder BSS blade 6 pole with negative bus and cover 5025B-BSS BS-5025
    		$64.00 Inc GST
    220475
    Fuseholder BSS blade 12 pole with cover 5029-BSS BS-5029
    		$108.00 Inc GST
    220476
    Fuseholder BSS blade 12 pole with negative bus and cover 5026B-BSS BS-5026
    		$83.00 Inc GST

    Related Products

  • BLUE SEA Blade Compact Common Source Fuseholder
    Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

    Downloads

    Part No. Description Price Quantity
    220477
    Fuseholder BSS compact blade 4 pole with cover 5045B-BSS BS-5045
    		$47.00 Inc GST
    220478
    Fuseholder BSS blade 8 pole with cover 5046-BSS BS-5046
    		$98.00 Inc GST
  • BLUE SEA SYSTEMS Maxi blade Fuseholder Surface Mount
    Blue Seas Systems MAXI-Blade Fuseholder, mountable with cover for termination. Screw down contacts for positive clamping of fuse. Dimensions 51mm x 36mm x 74mmh,

    Downloads

    Part No. Description Price Quantity
    220570
    Fuseholder BS for 1 Maxi blade fuse 5006100-BSS -
    		$60.00 Inc GST
  • BLUE SEA SYSTEMS SafetyHub 100 MIDI & Blade Fuseholder
    Waterproof fuseholder for 3 Midifuses + 4 ATO/ATC blade fuses, ideal for essential, never isolated circuits like bilge pumps, stereo and clock memories etc. Waterproof rated IP66.Inlet stud M8, Imax total 300A, Midi fuses total Imax 250A, Imax 200A/cct, stud size M8, Blade fuses total max 50A, 20A/cct. Ignition protected. Fuses not included.

    Downloads

    Part No. Description Price Quantity
    220660
    Fuseholder BS 3 Midi 4 blade fuses IP66 7725-BSS BS-7725
    		$212.00 Inc GST

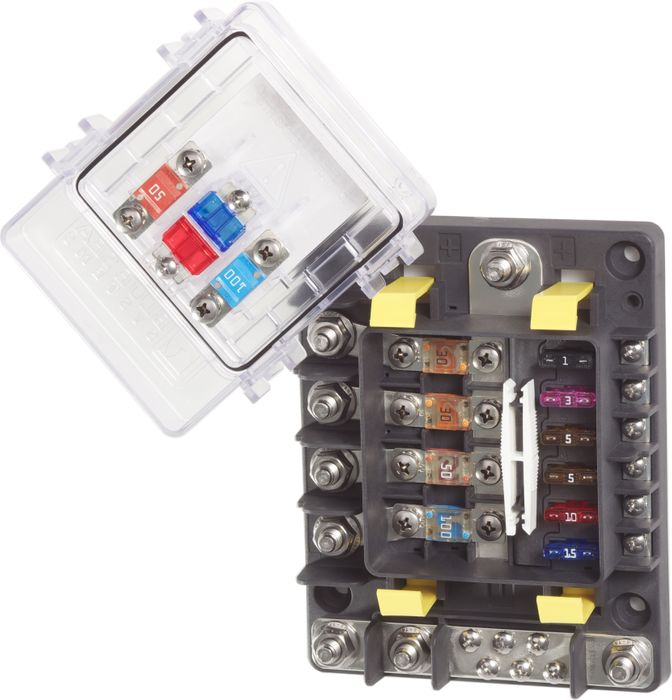

  • BLUE SEA SYSTEMS SafetyHub 150 MIDI & Blade Fuseholder
    Waterproof fuseholder for 4 Midifuses + 6 ATO/ATC blade fuses, rated IP66.Inlet stud M8, Imax total 300A, Midi fuses total Imax 250A, Imax 200A/cct, stud size M8, Blade fuses total max 50A, 20A/cct.

    Downloads

    Part No. Description Price Quantity
    220665
    Fuseholder BS 4 Midi 6 blade fuses IP66 7748-BSS BS-7748B
    		$250.00 Inc GST
  • BLUE SEA SYSTEMS MIDI Fuseholder in Housing
    The MIDI Safety Fuse Block from Blue Sea Systems is ignition and ingress protected. Rated 200A. Dimensions 125mm x 39mm x 42mmh. M8 s/s studs and nuts.
    Part No. Description Price Quantity
    220680
    Fuseholder BS MIDI fuse ignition protect 7720-BSS BS-7720
    		$70.00 Inc GST
  • BLUE SEA SYSTEMS MEGA Fuseholder in Housing
    MEGA fuseholder in housing by BLUE SEA SYSTEMS with clear insulating cover. Rated 300A. Dimensions 103mm x 37mm x 42mmh. M8 s/s studs and nuts.
    Part No. Description Price Quantity
    220770
    Fuseholder BS for SEA (MEGA) fuse &cover 5001B-BSS BS-5001
    		$36.00 Inc GST
  • BLUE SEA SYSTEMS ANL Lift-truck Fuseholder
    Blue Seas Systems ANL lift-truck fuseholder with clear cover. Cover breakouts allow side cable access. M8 s/s studs. For fuses up to 300A. Dimensions 109mm x 37mm x 42mmh. M8 s/s studs and nuts.
    Part No. Description Price Quantity
    220870
    Fuseholder BS 5005 for ANL fuses to 250A 5005B-BSS BS-5005
    		$40.00 Inc GST
  • BLUE SEA SYSTEMS ANL Lift-truck Fuseholder High Current
    Blue Seas Systems ANL lift-truck heavy-duty fuseholder with clear insulating cover. Fuse mount blocks tinned copper.Suitable for fuses up to 700A. 177mmx50mmx59mmh. M8 s/s terminals.
    Part No. Description Price Quantity
    220872
    Fuseholder BS 5503 for ANL fuses to 750A 5503-BSS BS-5503B
    		$116.00 Inc GST
  • T-Class Fuses
    Part No. Description Price Quantity
    220920
    Fuse T Class (JJN) 110A 5112B-BSS -
    		$62.00 Inc GST
    220921
    Fuse T Class (JJN) 125A 5113B-BSS -
    		$62.00 Inc GST
    220924
    Fuse T Class (JJN) 200A 5116B-BSS BS-5116
    		$65.00 Inc GST
    220925
    Fuse T Class (JJN) 225A 5117B-BSS BS-5117
    		$70.00 Inc GST
    220926
    Fuse T Class (JJN) 250A 5118B-BSS BS-5118
    		$70.00 Inc GST
    220928
    Fuse T Class (JJN) 300A 5119B-BSS BS-5119
    		$70.00 Inc GST
    220930
    Fuse T Class (JJN) 300A 5120B-BSS BS-5120
    		$70.00 Inc GST
    220932
    Fuse T Class (JJN) 400A 5121B-BSS BS-5121
    		$70.00 Inc GST
    220934
    Fuse T Class (JJN) 450A FT-450-B 114680
    		$164.00 Inc GST
  • T-Class Fuseholder
    Blue Seas Systems T-Class heavy-duty fuseholder with clear insulating cover. Cover breakouts allow cable access from all sides. M8 s/s studs. Fuse mount blocks tinned copper. Rated 400Amax. 177mmx50mmx59mm
    Part No. Description Price Quantity
    220970
    Fuseholder T Class 110-200A with cover BLUE SEA SYSTEMS 5007100B-BSS -
    		$100.00 Inc GST
  • Part No. Description Price Quantity
    220972
    Fuseholder T Class BS 5002 225-400A 5502B-BSS BS-5502B
    		$87.00 Inc GST
