Busbars & distribution Panels
1 to 21 of 21 results
-
BLIUE SEA SYSTEMS Single Distribution StudConnects high amperage cables securely. Stud dimensions
Part No. Description Price Quantity 260130Distribution Stud PowerPost Blue Sea 1x5mm 2011-BSS BS-2010$19.00 Inc GST 260134Distribution Stud PowerPost Blue Sea 1x10mm 2003-BSS BS-2003$28.00 Inc GST -

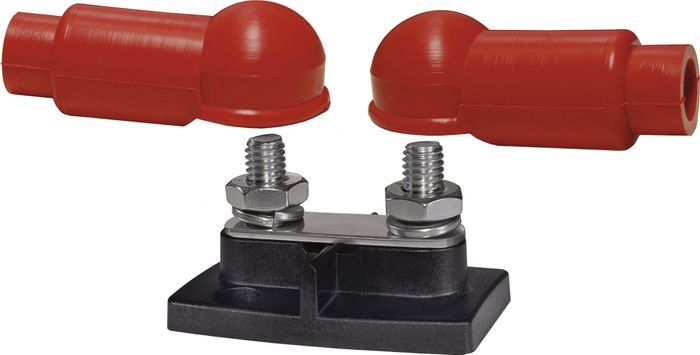

Provides a termination point for extending the length of outboard harnesses or other conductorsDesigned for connecting high amperage conductors. One-piece serrated flange nuts ensure correct and secure connections.
Part No. Description Price Quantity 260138Distribution Stud Dual Powerpost 2x10mm with insulators Blue Sea Systems 2017-BSS BS-2017$45.00 Inc GST -

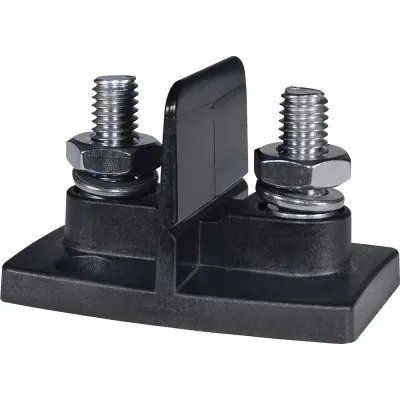

Enables connection of multiple smaller wires in spaces where a traditional bus bar may not fit150 Ampere bus allows small wire connections at high amperage cable connections. Connects high amperage cables securely. Stud dimensions
Part No. Description Price Quantity 260140Distribution Stud PowerPost Plus Blue Sea 1x10mm with 6xM4 bus 2103-BSS BS-2103$52.00 Inc GST -

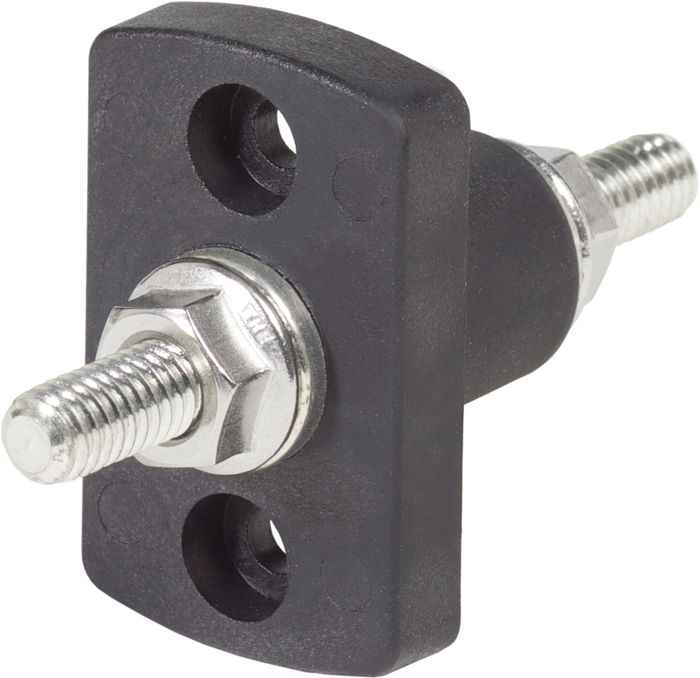

BLUE SEA SYSTEMS Terminal Feed Through ConnectorsLarge cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide strain relief when passing high current cable through hulls, decks and bulkheads. Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation Rated IP66, withstand water from heavy seas. Available in 8mm and 10mm studs..
Part No. Description Price Quantity 260180Stud feed through Blue Sea Systems 8mm positive 2202-BSS BS-2202$47.00 Inc GST 260181Stud feed through Blue Sea Systems 8mm negative 2201-BSS BS-2201$47.00 Inc GST 260182Stud feed through Blue Sea Systems 10mm positive 2204-BSS BS-2204$52.00 Inc GST 260183Stud feed through Blue Sea Systems 10mm negative 2203-BSS BS-2203$52.00 Inc GST -
BLUE SEAS Water-Resistant - 100A BusBarWater-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools. Accepts a wide range of wire sizes. Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used. Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring. Ideal for positive distribution and for the collection of negative or AC ground circuits. meets ABYC/USCG insulation requirements. Tin-plated copper busses and fuse clips. Includes four write-on circuit labels. Small format standard and custom labels available.
Downloads

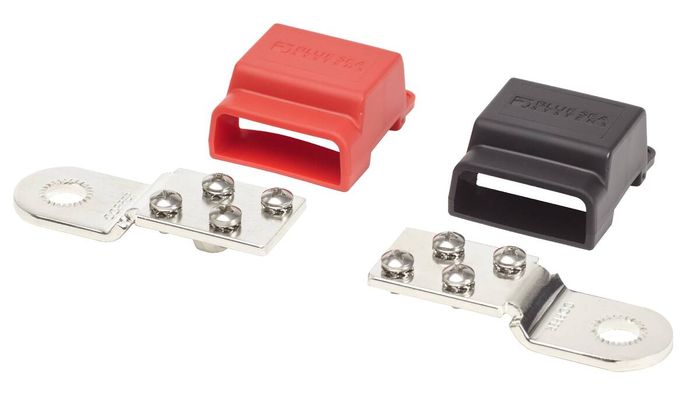

Part No. Description Price Quantity 260300BusBar battery terminal mount 100A 4x4mm screws pos& neg w covers Blue Sea Systems 2340-BSS BS-2340$50.00 Inc GST 260301BusBar battery terminal mount 100A 4x4mm screws positive w cover Blue Sea Systems 2341B-BSS -$20.00 Inc GST 260302BusBar battery terminal mount 100A 4x4mm screws negative w cover Blue Sea Systems 2342B-BSS BS-2342B$20.00 Inc GST -

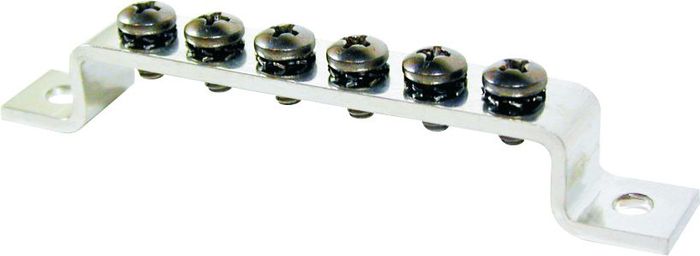

BLUE SEA 100A Compact Bus Bar100A tinned copper bus bar suited for common negative distribution. Compact dimensions, 95mm x 13mm x 15mm high. Six d4mm screws.
Part No. Description Price Quantity 260303BusBar 100A 6x4mm screws Blue Sea Systems 2306-BSS -$14.00 Inc GST -
Part No. Description Price Quantity 260304BusBar BS Water Resistant 100A with cover (4x4mm Screw, 1x5mm Stud) 2356-BSS -$69.00 Inc GST -
BLUE SEAS MiniBus – 100A Common BusBarsGreat for limited space applications, these bus bars measure 107mm x 23mm x mm high. Available with four 5mm studs or two 5mm studs plus five 4mm screws, both with or without a clear plastic cover.
Downloads
Part No. Description Price Quantity 260305BusBar BS 100A (5x4mm Screw, 2x5mm Stud) 2304B-BSS BS-2304$28.00 Inc GST 260306BusBar BS 100A (5x4mm Screw, 2x5mm Stud) with cover 2314-BSS BS-2314$33.00 Inc GST 260307BusBar BS 100A (4x5mm Stud) 2305-BSS 'BS-2305$31.00 Inc GST 260308BusBar BS 100A (4x5mm Stud) with cover 2315-BSS BS-2315$37.00 Inc GST Related Products
-

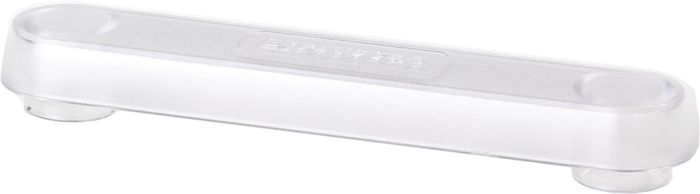

BLUE SEAS MiniBus 100A BusBar Cover for PN 260305 and 260307Clear plastic cover for 100A Bus bars. This is the same cover that is supplied as part of 260306 and 260308.
Part No. Description Price Quantity 260310Cover for Blue Seas BusBar 100A PN260305/7 2713-BSS BS-2713$8.00 Inc GST Related Products
-
-

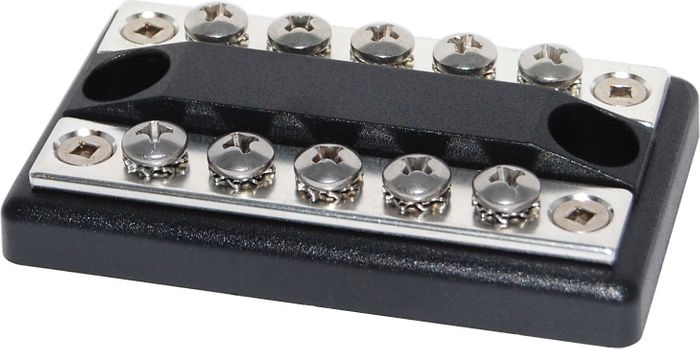

BLUE SEAS DualBus – 100A Common BusBarsCombines negative and positive buses on one block
Downloads
Part No. Description Price Quantity 260315Bus Bar BS DualBus100A (5 per bus x4mm, 5mm mounting screw) 2701-BSS BS-2701$36.00 Inc GST 260316Bus Bar BS DualBus100A (10 per bus x4mm, 5mm mounting screw) 2702-BSS BS-2702$47.00 Inc GST -
Part No. Description Price Quantity 260317Cover for BusBar Dual BlueSeas 100A for PN 260315 2709-BSS -$28.00 Inc GST 260318Cover for BusBar Dual BlueSeas 100A for PN 260316 2710-BSS -$32.00 Inc GST Related Products
-

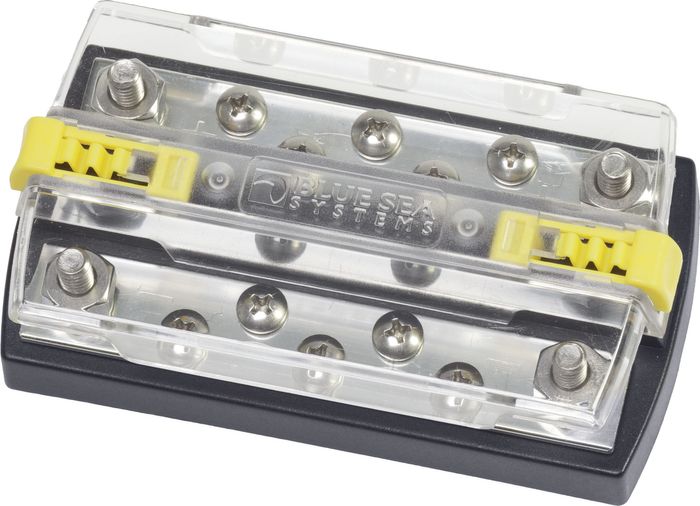

BLUE SEAS DualBus Plus – 150A Common BusBarsSecure, clear polycarbonate cover snaps on easily to meet ABYC insulation requirements. Combines negative and positive buses on one block. Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements.
Downloads
Part No. Description Price Quantity 260320BusBar DualPlus BS 150A (5 per bus x5mm Screw, 2 per bus x6mm Stud) 2722-BSS BS-2722$60.00 Inc GST 260321BusBar DualPlus BS 150A (5 per bus x5mm Screw, 2 per bus x8mm Stud) 2723-BSS BS-2723$68.00 Inc GST -

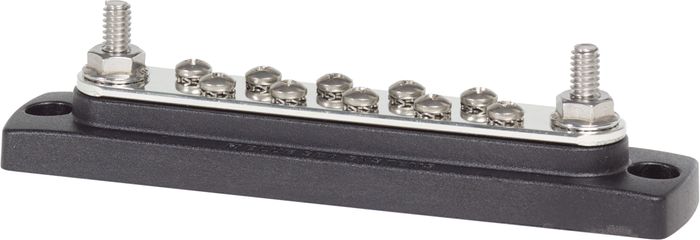

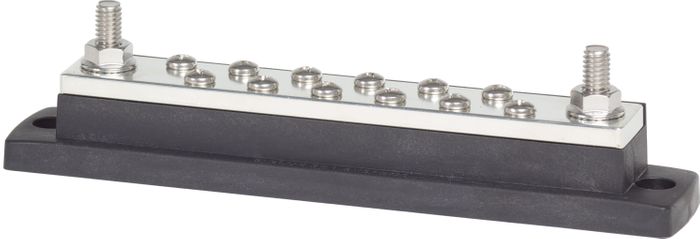

BLUE SEAS 150A Common BusBarsInsert-molded stainless steel studs eliminate the need for securing nuts and allow high torqueing for excellent electrical contact. The industry standard busbar for positive distribution and the collection of negative or AC ground circuits.
Downloads
Part No. Description Price Quantity 260325BusBar BS 150A (10x4mm Screw, 2x6mm Stud) 2301-BSS BS-2301$37.00 Inc GST 260326BusBar BS 150A (10x4mm Screw, 2x6mm Stud) with cover 2300B-BSS BS-2300$29.00 Inc GST 260327BusBar BS 150A (20x4mm Screw, 2x6mm Stud) 2302-BSS BS-2302$57.00 Inc GST 260328BusBar BS 150A (20x4mm Screw, 2x6mm Stud) with cover 2312-BSS BS-2312B$68.00 Inc GST 260329BusBar BS 150A 4x6mmST 2303-BSS BS-2303$47.00 Inc GST 260330BusBar BS 150A 4x6mm studs with cover 2307B-BSS BS-2307B$35.00 Inc GST Related Products
-
BLUE SEAS Common 150A BusBar Cover for PN 260325, 260327 and 260329
Part No. Description Price Quantity 260331Cover for BusBar Common BlueSeas 150A for PN 260325 and 260329 2715-BSS BS-2715$9.00 Inc GST 260332Cover for BusBar Common BlueSeas 150A for PN 260327 2716-BSS -$14.00 Inc GST Related Products
-

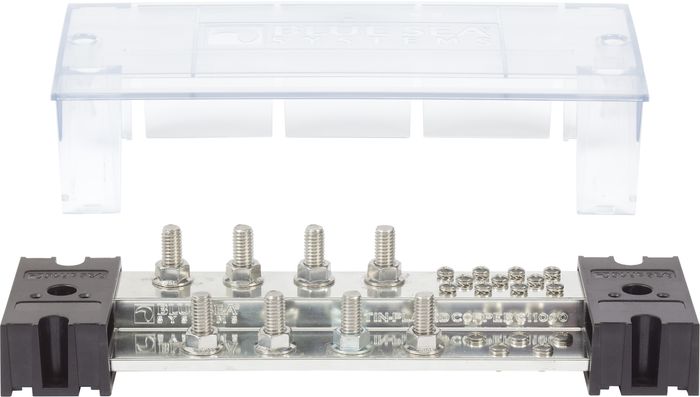

BLUE SEAS MaxiBus – 250A Common BusBarsNow with insert-molded stainless steel studs and optional fully enclosed insulating base and cover. Raised bus provides easy access to multiple wires on a single screw or stud. UL 94-V0 rated base material resists high heat. Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces.
Downloads
Part No. Description Price Quantity 260334BusBar BS MaxiBus 250A (6x5mm Screw, 2x8mm Stud) (length 149mm, mounting centers in 133mm) 2128-BSS -$80.00 Inc GST 260335BusBar BS MaxiBus 250A (4x8mm Stud) (length 149mm, mounting centers in 133mm) 2127B-BSS BS-2127$63.00 Inc GST 260336BusBar BS MaxiBus 250A (12x5mm Screw, 2x8mm Stud) (length 197mm, mounting centers in 181mm) 2105-BSS BS-2105$118.00 Inc GST 260337BusBar BS MaxiBus 250A (6x8mm Stud) (length 197mm, mounting centers in 181mm) 2126B-BSS BS-2126B$128.00 Inc GST -

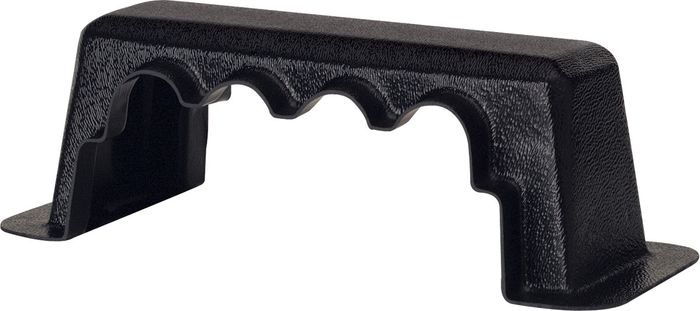

BLUE SEAS MaxiBus 250A Insulating Cover for PN 260335, 260336 and PN 260337,260338
Part No. Description Price Quantity 260338Cover for BusBar MaxiBus 250A for PN 260334 and 260335 Blue Sea Systems 2719B-BSS BS-2719$44.00 Inc GST 260339Cover for BusBar MaxiBus 250A for PN 260336 and 260337 Blue Sea Systems 2718-BSS -$71.00 Inc GST Related Products
-
-

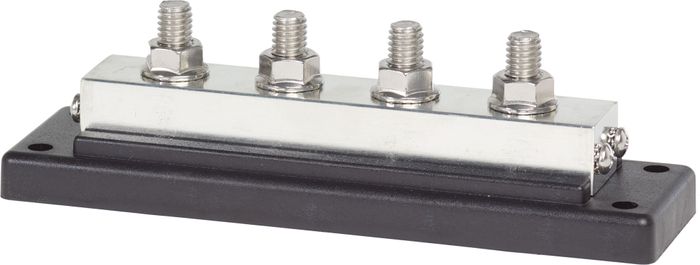

BLUE SEAS PowerBar-200A Common BusBarsProvides compact high-amp busing with 10mm terminal studs.
Downloads
Part No. Description Price Quantity 260345BusBar BS PowerBar with insulator 200A (2x10mm Stud) 2019-BSS BS-2019$49.00 Inc GST 260346BusBar BS PowerBar 200A (2x10mm Stud) 2020-BSS -$36.00 Inc GST -
BLUE SEAS PowerBar-600A Common BusBarsHigh amperage BusBar with 10mm terminal studs.
Downloads
Part No. Description Price Quantity 260350BusBar BS PowerBar 600A (4x4mm Screw, 4x10mm Stud) (Length 177.8mm, Mounting centers in 158.74mm) 2104B-BSS BS-2104$226.00 Inc GST 260351BusBar BS PowerBar 600A (4x4mm Screw, 8x10mm Stud) (Length 288.93mm, Mounting centers in 263.53mm) 2107-BSS -$287.00 Inc GST Related Products
-
BLUE SEAS Common 650A BusBar Cover for PN 260350
Part No. Description Price Quantity 260352Cover for BusBar Common BlueSeas 650A for PN 260350 2708-BSS -$49.00 Inc GST Related Products
-
-
BLUE SEAS PowerBAR – 1000A Common BusBarComplex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
Part No. Description Price Quantity 260355BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 8x10mm Stud) 1990-BSS -$357.00 Inc GST 260356BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 12x10mm Stud) 1991-BSS -$446.00 Inc GST 260357BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 8x8mm Stud) 1992-BSS -$357.00 Inc GST 260358BusBar BS PowerBar with cover 1000A (5x10,11x4mm Screw, 12x8mm Stud) 1993-BSS -$446.00 Inc GST Related Products
-
-
BLUE SEAS PowerBar 1000A BusBar Cover for PN 260355,260357 and PN 260356,260358
Part No. Description Price Quantity 260359Cover for BusBar PowerBar BlueSeas 1000A for PN 260355 and 260357 2730B-BSS -$49.00 Inc GST 260360Cover for BusBar PowerBar BlueSeas 1000A for PN 260356 and 260358 2731B-BSS -$47.00 Inc GST Related Products
1 to 21 of 21 results
