Battery Switches

  • Blue Sea Systems Battery Switch
    The Blue Sea Systems M-Series battery switch, single circuit has an enclosed housing with removable rear and side covers and meets ABYC requirements. This switch can optionally be panel mounted.. Dimensions 74mmx74mmx84mm, fastening holes d5,5mm in 55mm square. Panel mountable in a 59mm cutout [protrusion 42mm, intrusion 42mm]. Studs M10 tin plated copper.

    Downloads

    Part No. Description Price Quantity
    201020
    Switch battery single pole red 300A/900A Blue Sea Systems 6006B-BSS BS-6006
    		$48.00 Inc GST
    201021
    Switch battery single pole black 300A/900A Blue Sea Systems 6006200B-BSS BS-6006200B
    		$48.00 Inc GST
  • Part No. Description Price Quantity
    201022

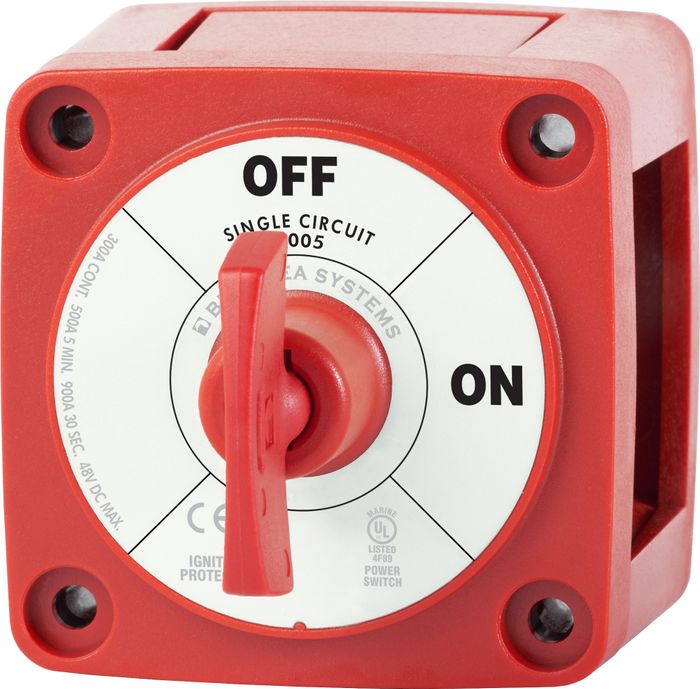

    Switch battery single pole with key 300A/900A Blue Sea Systems 6005-BSS BS-6005
    		$66.00 Inc GST
    201023
    Switch battery single pole with key 300A/900A black Blue Sea Systems 6005200-BSS BS-6005200
    		$66.00 Inc GST
  • Blue Sea Systems Single Pole Battery Switch
    Switches a single battery to a single load group Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201025
    Switch battery single pole 350A/1200A Blue Sea Systems 9003eB-BSS BS-9003eB
    		$68.00 Inc GST
    201026
    Switch battery single pole 350A/1200A with Alternator Field Disconnect Blue Sea Systems 9004E-BSS -
    		$119.00 Inc GST

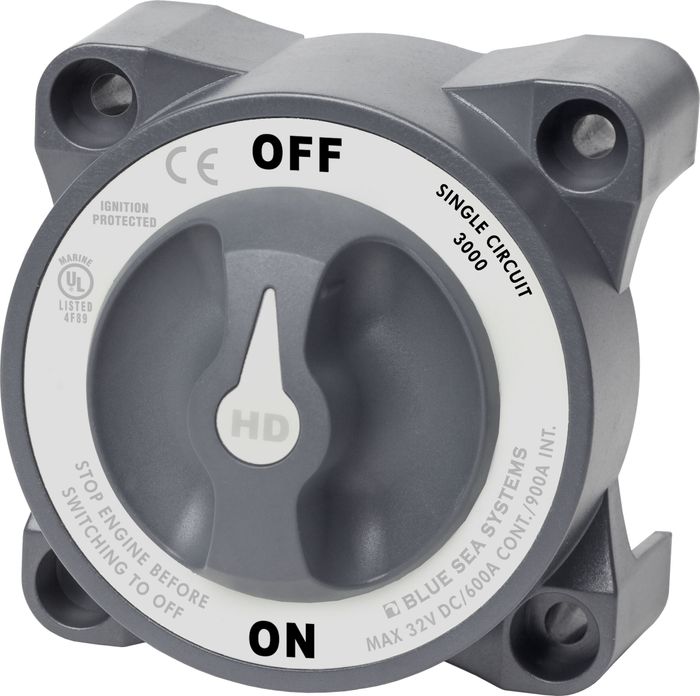

  • Blue Sea Systems Heavy Duty Single Pole Battery Switch
    Switches a single battery to a single load group. gnition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. Accepts two 4/0 AWG [95mm²] battery cables.

    Downloads

    Part No. Description Price Quantity
    201027
    Switch battery single pole Heavy Duty 600/1750A Blue Sea Systems 3000B-BSS BS-3000
    		$135.00 Inc GST

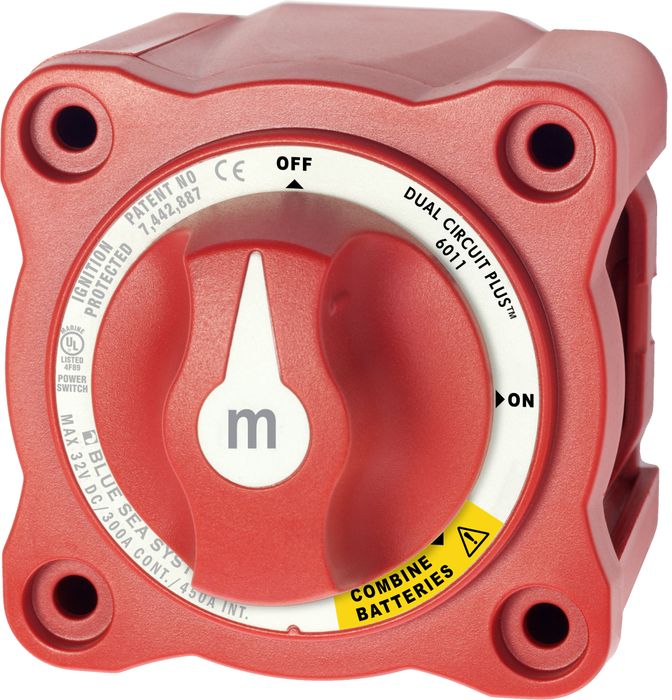

  • Blue Sea Systems Dual Circuit Battery Switch
    Simultaneously switches two isolated battery banks or combines battery banks to all loads Make before break contact design allows switching between battery banks without power interruption.

    Downloads

    Part No. Description Price Quantity
    201120
    Switch battery 0-I dual circuit 300/675A Blue Sea Systems 6011B-BSS BS-6011
    		$110.00 Inc GST
  • Blue Sea Systems Dual Circuit Battery Switch
    Simultaneously switches two isolated battery banks or combines battery banks to all loads Make-before-break contact design allows switching without power interruption Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201125
    Switch battery 0-I dual circuit 350/700A Blue Sea Systems 5511e-BSS BS-5511e
    		$135.00 Inc GST

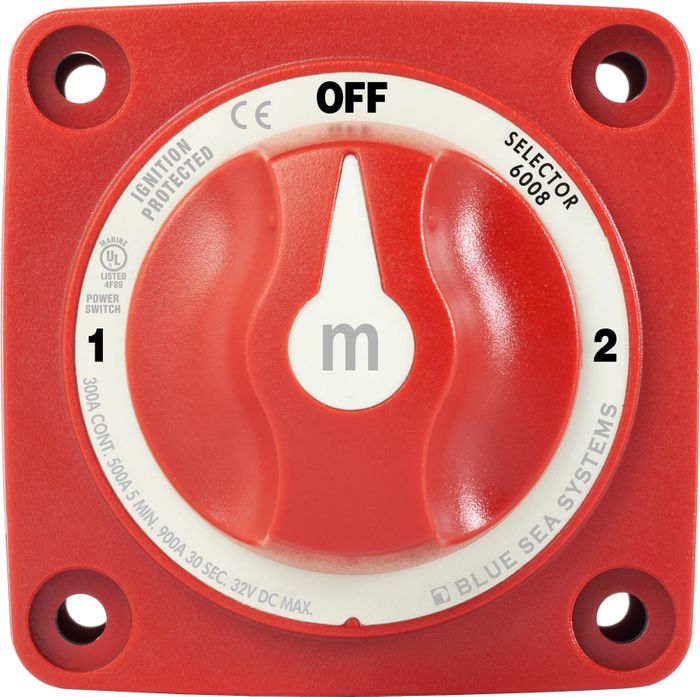

  • Blue Sea Systems m-series Selector 3 Position Switch
    Switches a single battery to a single load group. Ignition protected—safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201220
    Switch battery selector 3 position 300A Blue Sea Systems 6008-BSS -
    		$110.00 Inc GST
    201221
    Switch battery selector 3 position 300A black Blue Sea Systems 6008-BSS -
    		$110.00 Inc GST
  • Part No. Description Price Quantity
    201222
    Switch battery selector 4 position 300A Blue Sea Systems 6007-BSS BS-6007
    		$89.00 Inc GST
  • Blue Sea Systems e-series Selector 3 Position Switch
    Switches a single battery to a single load group Includes AFD [Alternator Field Disconnect] Ignition protected—safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201224
    Switch battery selector 3 position 350A with AFD Blue Sea Systems 11001-BSS BS-11001
    		$100.00 Inc GST

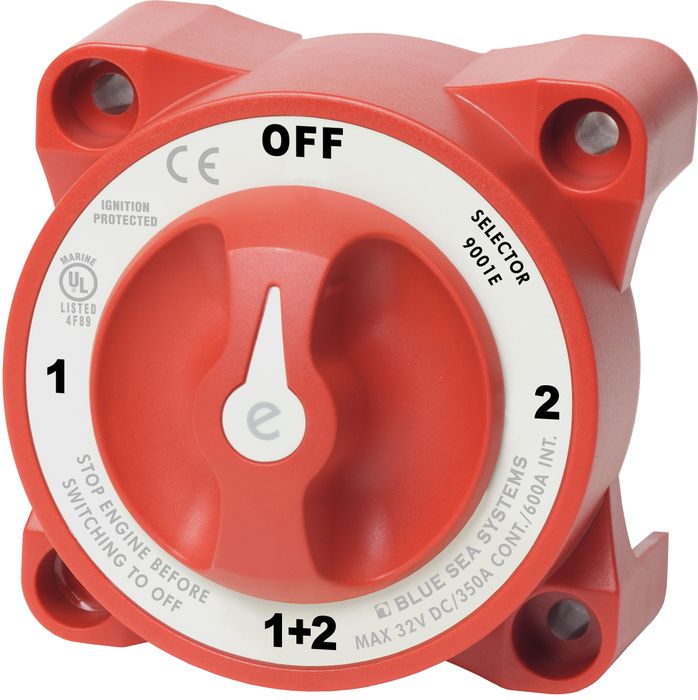

  • Blue Sea Systems 4 Position Battery Switch
    Switches isolated battery banks to all loads or combines battery banks to all loads Make-before-break contact design allows switching between battery banks without power interruption Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201225
    Switch battery selector 4 position 350A with AFD Blue Sea Systems 9001E-BSS BS-9001E
    		$106.00 Inc GST

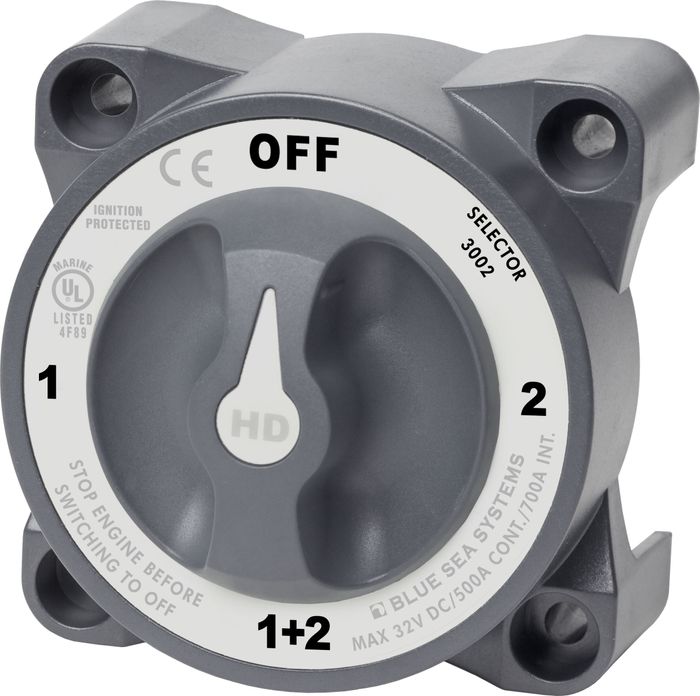

  • Blue Sea Systems Heavy Duty 4 Position Battery Switch
    Switches isolated battery banks to all loads or combines battery banks to all loads. Make-before-break contact design allows switching between battery banks without power interruption Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. Accepts two 4/0 AWG [95mm²] battery cables.

    Downloads

    Part No. Description Price Quantity
    201227
    Switch battery selector 4 position 500A with AFD Blue Sea Systems 3002-BSS BS-3002
    		$205.00 Inc GST
  • Blue Sea Systems Dual Circuit Battery Switch
    Simultaneously switches two isolated battery banks. Ignition protected—safe for installation. Aboard gasoline powered boats. Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201320
    Switch battery double pole 300A Blue Sea Systems 6010-BSS BS-6010B
    		$110.00 Inc GST

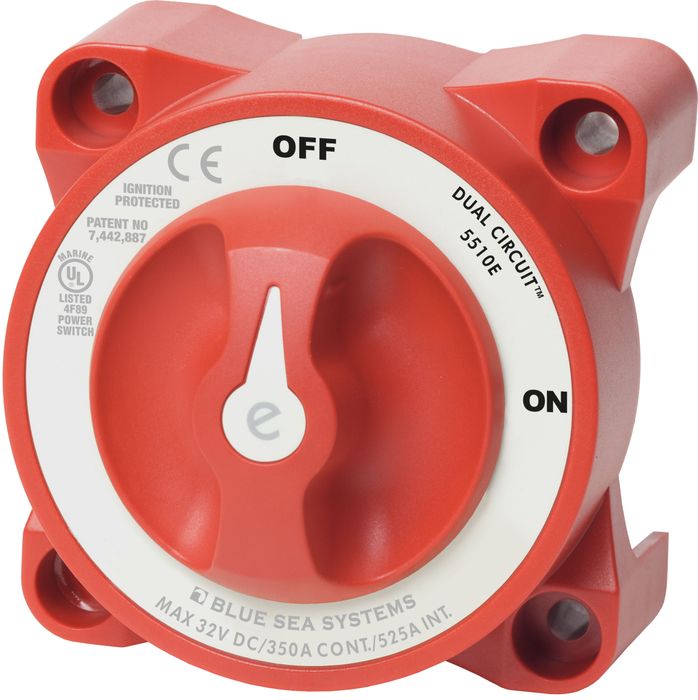

  • Blue Sea Systems Double Pole Battery Switch
    Simultaneously switches two isolated battery banks Ignition protected—safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting.

    Downloads

    Part No. Description Price Quantity
    201325
    Switch battery double pole 350A Blue Sea Systems 5510EB-BSS BS-5510E
    		$94.00 Inc GST

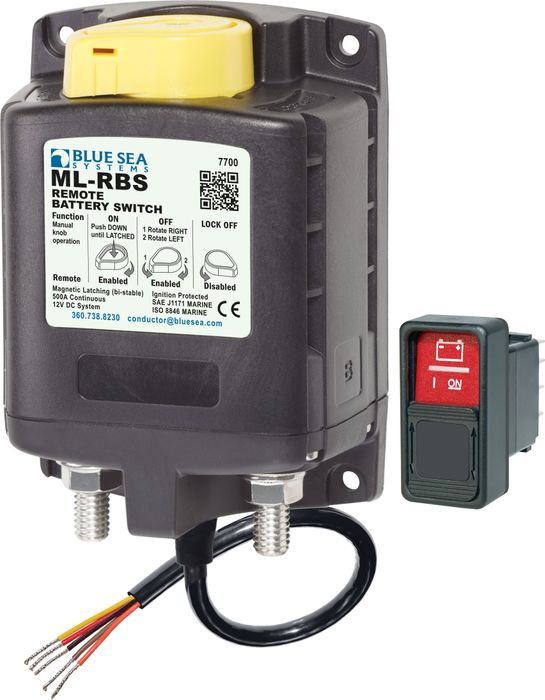

  • Blue Sea ML Magnetic Remote Battery Switches
    These remote battery isolation switches are available for 12 Volts or 24 Volts and have manual override actuators. They are available with either Bi-stable or Mono-stable controls. The bi-stable switches are controlled by a pulse from a momentary-on switch. The switch stays on after receiving the pulse without drawing any further current. The switch is turned off by a second pulse of the control circuit. The bi-stable switches can switch loads with voltages up to 64 Volts. The mono-stable switches are controlled by a latching switch and are switched on for as long as there is power on the control circuit. The control circuits will draw a low current of less than 13mA for as long as they are on. The mono-stable battery switch will be turned off as soon as power is removed from the control circuit. The mono-stable switches can switch loads up to the voltage as the rating of the switch. These switches can be controlled by any momentary-on or latching-on switches respectively, or dedicated Blue Sea rocker switches with slider guards and labels can be ordered as optional extras. The switches have a switched output for a remote indicator light. Rated up to 500A continuous, 1450A cranking, see pdf for wire size requirements. M10 studs

    Downloads

    Part No. Description Price Quantity
    201420
    Switch battery remote single circuit 500A with isolated control circuit , bistable (momentary control) no switch 16.5Vmax Blue Sea Systems 7700B-BSS BS-7700B
    		$340.00 Inc GST
    201421
    Switch battery remote single circuit 500A with isolated control circuit , bistable (momentary control) no switch 32Vmax Blue Sea Systems 7702B-BSS BS-7702B
    		$340.00 Inc GST
    201422
    Switch battery remote single circuit 500A with isolated control circuit , monostable (latching control) no switch 16.5Vmax Blue Sea Systems 7713B-BSS BS-7713B
    		$463.00 Inc GST
    201423
    Switch battery remote single circuit 500A with isolated control circuit , monostable (latching control) no switch 32Vmax Blue Sea Systems 7717B-BSS BS7717-B
    		$393.00 Inc GST

    Related Products

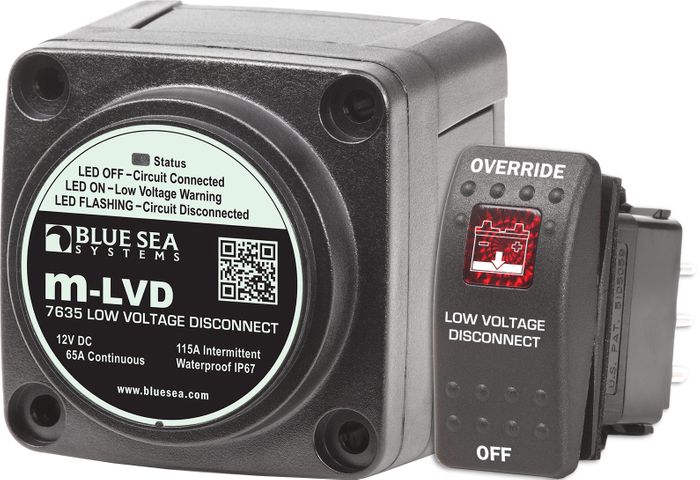

  • BLUE SEA SYSTEMS Low Voltage Disconnect
    The Blue Sea m-LVD is designed to disconnect loads from a battery when the battery voltage falls below a set voltage. Five disconnect settings between 11.3V and 12.1V can be selected using the remote rocker switch 7928 supplied with the unit. The remote rocker switch is also used to connect or manually disconnect the loads until the voltage rises or to override circuit disconnect by 10 minutess. Indicator lights on the unit as well as the rocker switch flash after a five-minute delay after the battery voltage has fallen below the set point. Whilst the lights are flashing an alarm output is also activated, onto which an alarm such as a buzzer [not supplied] can be connected. The relay will disconnect the loads a further five minutes after the alarm mode has activated. The unit can be mounted behind or in front of a panel or surface mounted. Housing dimensions 73 x 73 x 65mm, four d5mm mounting holes on 55.2mm centres. Rear panel mount through d59mm hole, intrusion 48mm. Front panel mount through d67mm hole, protrusion 35mm, intrusion 26mm, max. panel thickness 8mm. Terminal stud size ¼ inch/6mm.

    Downloads

    Part No. Description Price Quantity
    201460
    Low voltage battery disconnect m-LVD with override rocker switch BLUE SEA SYSTEMS 7635B-BSS BS-7635
    		$192.00 Inc GST
  • BLUE SEA Battery Switch ICON Label Kit
    18 icon labels for battery switches to identify circuits. Suits most Blue Sea battery switches.
    Part No. Description Price Quantity
    201919
    Label sheet for battery switches, 18 labels Blue Sea Systems 7902-BSS -
    		$15.00 Inc GST

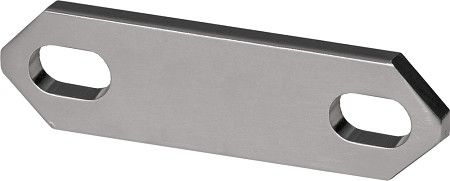

  • Blue Sea Systems Link
    Link for use with Blue Sea Systems ML series Remote Battery Switches and Automatic Charging Relays. 500 Amp continuous rating, hole pitch 57mm to 70mm.
    Part No. Description Price Quantity
    201950
    Link for Blue Sea remote battery switches 9160-BSS -
    		$34.00 Inc GST
