DC-DC Converters & conditioners
1 to 6 of 6 results
-

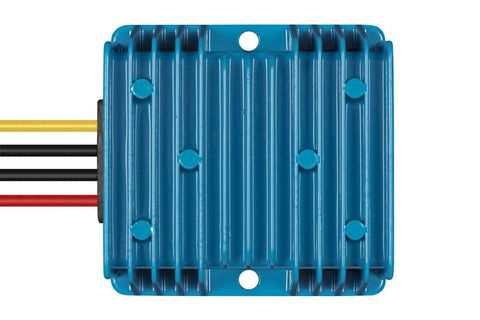

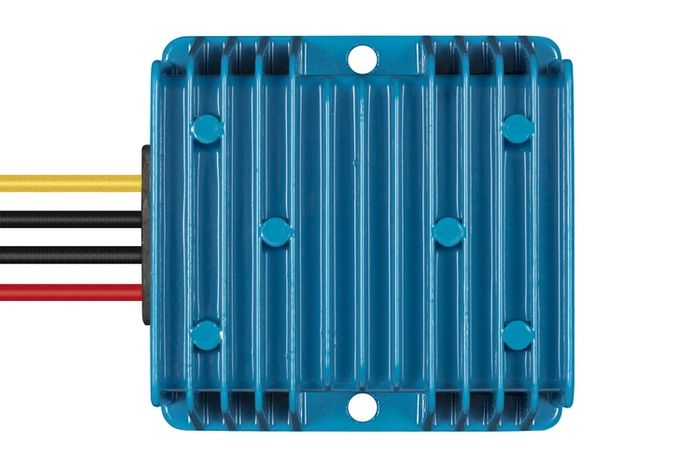

VICTRON Orion IP67 DC-DC ConvertersCompletely encapsulated, waterproof, shockproof and ignition protected. Water, oil or dirt will not damage the VICYTRON Orion IP67 DC-DC Converters. The casing is made of cast aluminium and the electronics are moulded in resin. Available in 5 models.
Downloads
Part No. Description Price Quantity 170030Voltage converter Orion IP67 24V-12V 05A VICTRON ORI241205260$35.00 Inc GST 170032Voltage converter Orion IP67 24V-12V 10A VICTRON+ ORI241210260$58.00 Inc GST 170034Voltage converter Orion IP67 24V-12V 20A VICTRON ORI241220260$76.00 Inc GST 170036Voltage converter Orion IP67 24V-12V 100A VICTRON ORI241221226$386.00 Inc GST 170038Voltage converter Orion IP67 12V-24V 50A VICTRON ORI122421226$463.00 Inc GST -

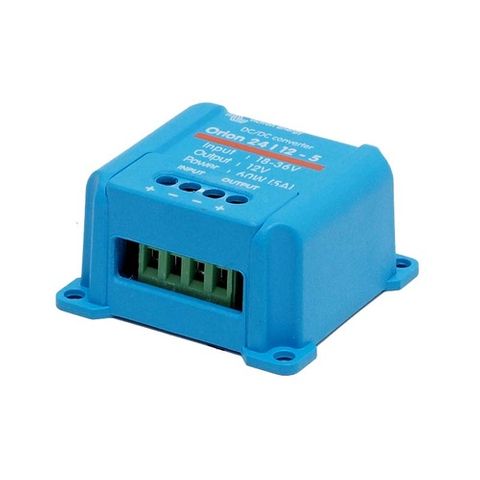

VICTRON Orion DC-DC ConvertersVictron Energy Orion non-isolated DC-DC convertors.
Part No. Description Price Quantity 170040Voltage converter Orion TR non-isolated 24V-12V 5A VICTRON ORI241205200R$25.00 Inc GST 170041Voltage converter Orion TR non-isolated 24V-12V 10A VICTRON ORI241210200R$56.00 Inc GST 170042Voltage converter Orion TR non-isolated 24V-12V 15A VICTRON ORI241215200R$63.00 Inc GST 170043Voltage converter Orion TR non-isolated 24V-12V 20A VICTRON ORI241220200R$71.00 Inc GST -

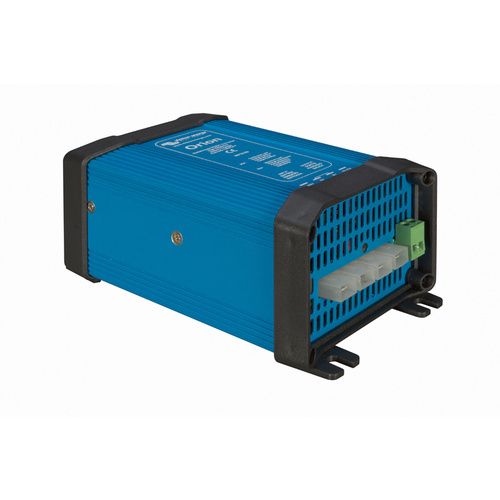

VICTRON Orion High Power DC-DC ConvertersVictron Energy Orion non-isolated high power DC-DC convertorsare cost effective DC_DC converters for applications where isolation is not required. A remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch. All models with adjustable output can also be used as a battery charger, e.g. to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current - up to five units can be connected in parallel. Easy to install.
Downloads
Part No. Description Price Quantity 170050Voltage converter Orion high power non-isolated 24V-12V 25A VICTRON ORI241225020$116.00 Inc GST 170052Voltage converter Orion high power non-isolated 24V-12V 40A VICTRON ORI241240021$158.00 Inc GST 170054Voltage converter Orion high power non-isolated 24V-12V 70A VICTRON ORI241270020$210.00 Inc GST 170055Voltage converter Orion high power non-isolated 12V-24V 8A VICTRON ORI122408020$91.00 Inc GST 170057Voltage converter Orion high power non-isolated 12V-24V 10A VICTRON ORI122410020$104.00 Inc GST 170059Voltage converter Orion high power non-isolated 12V-24V 20A VICTRON ORI122420020$238.00 Inc GST -
Part No. Description Price Quantity 170130Voltage converter Orion TR isolated 12V-24V 5A VICTRON ORI122410110$107.00 Inc GST 170132Voltage converter Orion TR isolated 12V-24V 10A VICTRON ORI122424110$194.00 Inc GST 170134Voltage converter Orion TR isolated 12V-24V 15A VICTRON ORI122441110$341.00 Inc GST -
VICTRON Orion-Tr DC-DC Isolated ConvertersThe VICTRON Orion-Tr DC-DC Isolated Converters are cost effective converters that convert power from a wide range of input voltages to stable, constant output voltages. Available for 12 / 24 / 48 Volt, these units can either stabilise the input voltage or step up or step down to a lower or higher voltage. A remote on/off function can be operated with a low power switch or by for example the engine run/stop switch, eliminating the need for a high current switch in the input wiring. All models are short circuit proof, and an unlimited number of units can be connected in parallel to increase output current. When installed with the screw terminals oriented downwards, these units have an IP43 ingress protection rating. Wiring termination is by screw terminals, making for an easy installation without special tools. The 12V and 24V input models only are equipped with an input fuse.
Downloads
Part No. Description Price Quantity 170140Voltage converter Orion TR isolated 24V-12V 9A VICTRON ORI241210110R$113.00 Inc GST 170142Voltage converter Orion TR isolated 24V-12V 20A VICTRON ORI241224110$194.00 Inc GST 170144Voltage converter Orion TR isolated 24V-12V 30A VICTRON ORI241240110$341.00 Inc GST -

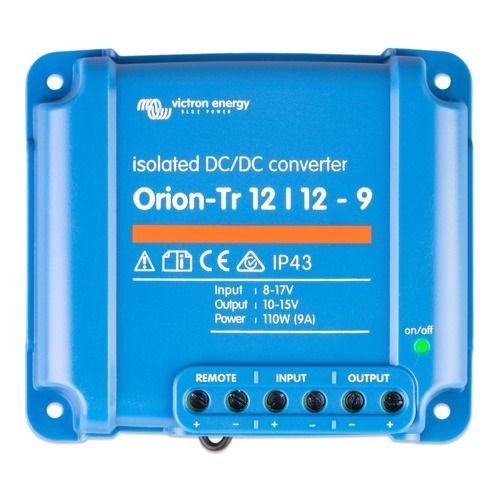

VICTRON Orion-Tr DC-DC Isolated ConvertersThe VICTRON Orion-Tr DC-DC Isolated Converters are cost effective converters that convert power from a wide range of input voltages to stable, constant output voltages. Available for 12 / 24 / 48 Volt, these units can either stabilise the input voltage or step up or step down to a lower or higher voltage. A remote on/off function can be operated with a low power switch or by for example the engine run/stop switch, eliminating the need for a high current switch in the input wiring. All models are short circuit proof, and an unlimited number of units can be connected in parallel to increase output current. When installed with the screw terminals oriented downwards, these units have an IP43 ingress protection rating. Wiring termination is by screw terminals, making for an easy installation without special tools. The 12V and 24V input models only are equipped with an input fuse.
Downloads
Part No. Description Price Quantity 180040Power conditioner Orion TR isolated 12V-12V 9A VICTRON ORI121210110R$107.00 Inc GST 180042Power conditioner Orion TR isolated 12V-12V 18A VICTRON ORI121222110$194.00 Inc GST 180044Power conditioner Orion TR isolated 12V-12V 30A VICTRON ORI121240110$341.00 Inc GST 180045Power conditioner Orion TR isolated 24V-24V 5A VICTRON ORI242410110R$107.00 Inc GST 180047Power conditioner Orion TR isolated 24V-24V 12A VICTRON ORI242428110$194.00 Inc GST 180049Power conditioner Orion TR isolated 24V-24V 17A VICTRON ORI242441110$341.00 Inc GST
1 to 6 of 6 results
